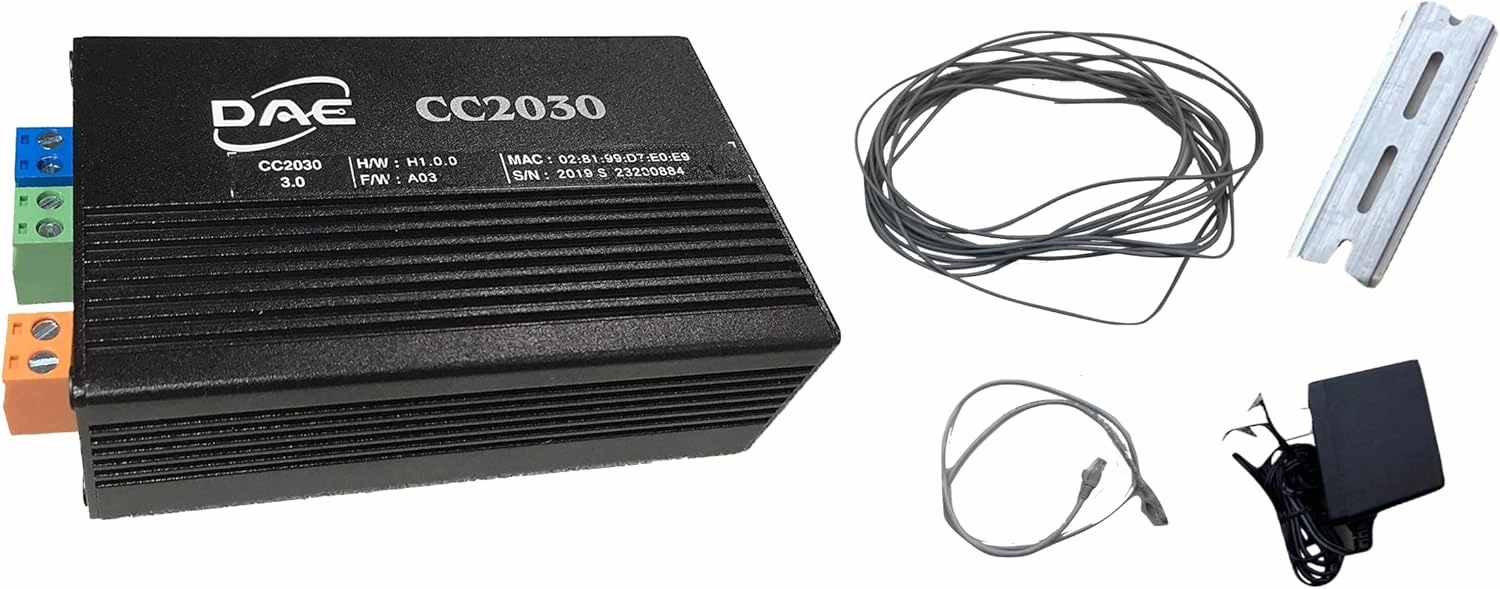

- CC2030 gateway will collect kWh data or water usage from DAE electrical meters or AMR Series and send them to the cloud (DAE server) through Ethernet. With cell phone/PC, you can read metering data and generate billing reports. No IT guy required. Just connect wires as per a simple picture (or video) & ready to go. If there is abnormal water usage (ex. Broken piping), an email alert will be sent to your cell phone automatically. It includes 1 software key and 1 annual fee. One CC2030 Gateway can monitor 20 meters ( water, electricity, and gas). 1 software key ($30, one-time fee) and 1 annual fee ($2.5) per meter is required for additional meter connected to the CC2030.

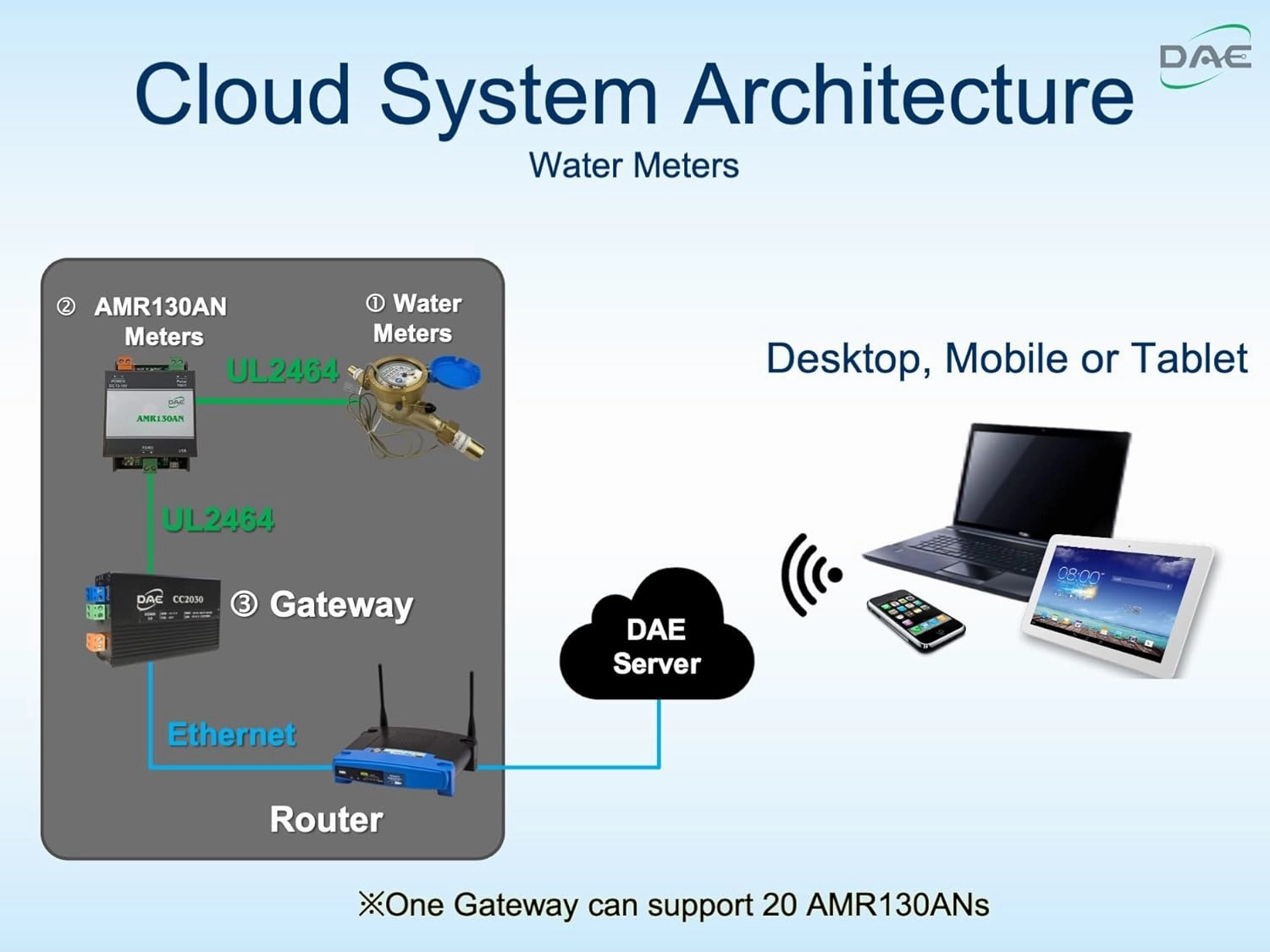

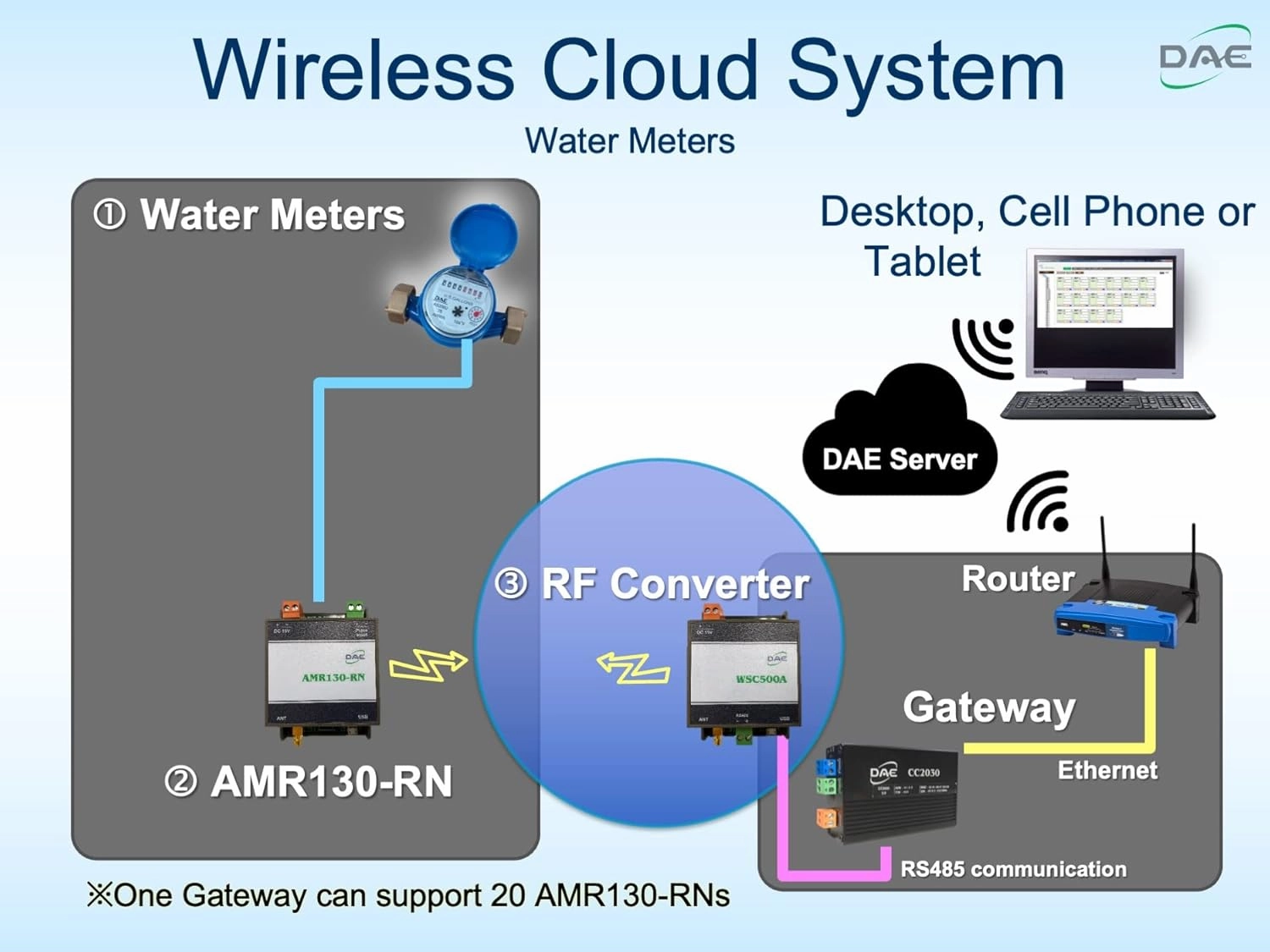

- If feasible to draw a cable between AMR130AN (close to water meter) and CC2030 (close to your router), it will be more cost-effective to choose DAE CC2030 KIT AMR130AN KIT. (2nd picture) For existing building, hard to draw cable between AMR130AN and CC2030, please choose 1 AMR130-RN KIT 1 CC2030 KIT 1 WSC500A to connect them wirelessly. (3rd picture)
- For monitoring up to 16 water meters remotely, you will just need 1 AMR KIT 1 CC2030 KIT. (4th picture) For existing building, hard to draw cable between AMR (close to water meter) and CC2030 (close to your router), please choose 1 AMR KIT 1 CC2030 KIT 2 WSC500 RF Converters to connect them wirelessly. (5th picture)
- For DAE Cloud Metering Solutions on electricity (6th picture), in additional to CC2030 KIT Gateway, you will need electric submeters with RS485 communication like P254-200-S KIT or P153-200-S KIT) or SMB350-UL-8-B KIT (24 circuits). For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly. (7th picture)
- TOU (Time of Use) billing reports are available from the DAE Cloud Metering System for electricity. Indoor use only, DAE B1725 watertight enclosure available for outdoor use. DAE Controls LLC is a Minority Business. Welcome to download NMSDC Minority Supplier Certificate from DAE Controls Website.
