- 1.Intelligent leakage protection and overload dual protection
- The DbvrhXmkn universal circuit breaker is equipped with RCD leakage protection technology, accurately detecting abnormal circuit currents (with a resp-onse time of ≤0.1 seconds). Combined with an overload protection switch function, it effectively prevents short circuits, leakage, and current overload risks, providing dual safety guarantees for industrial equi-pment and household electricity usage.
- 2. Automatic reset design to reduce downtime losses
- The innovative automatic reset mechanism enables power su-pply to be restored without manual operation after troubleshooting. It is particularly suitable for continuous operation scenarios such as mechanical processing and production lines, significantly reducing equi-pment downtime and labor maintenance costs.
- 3. High-efficiency LED status indication, clear at a glance

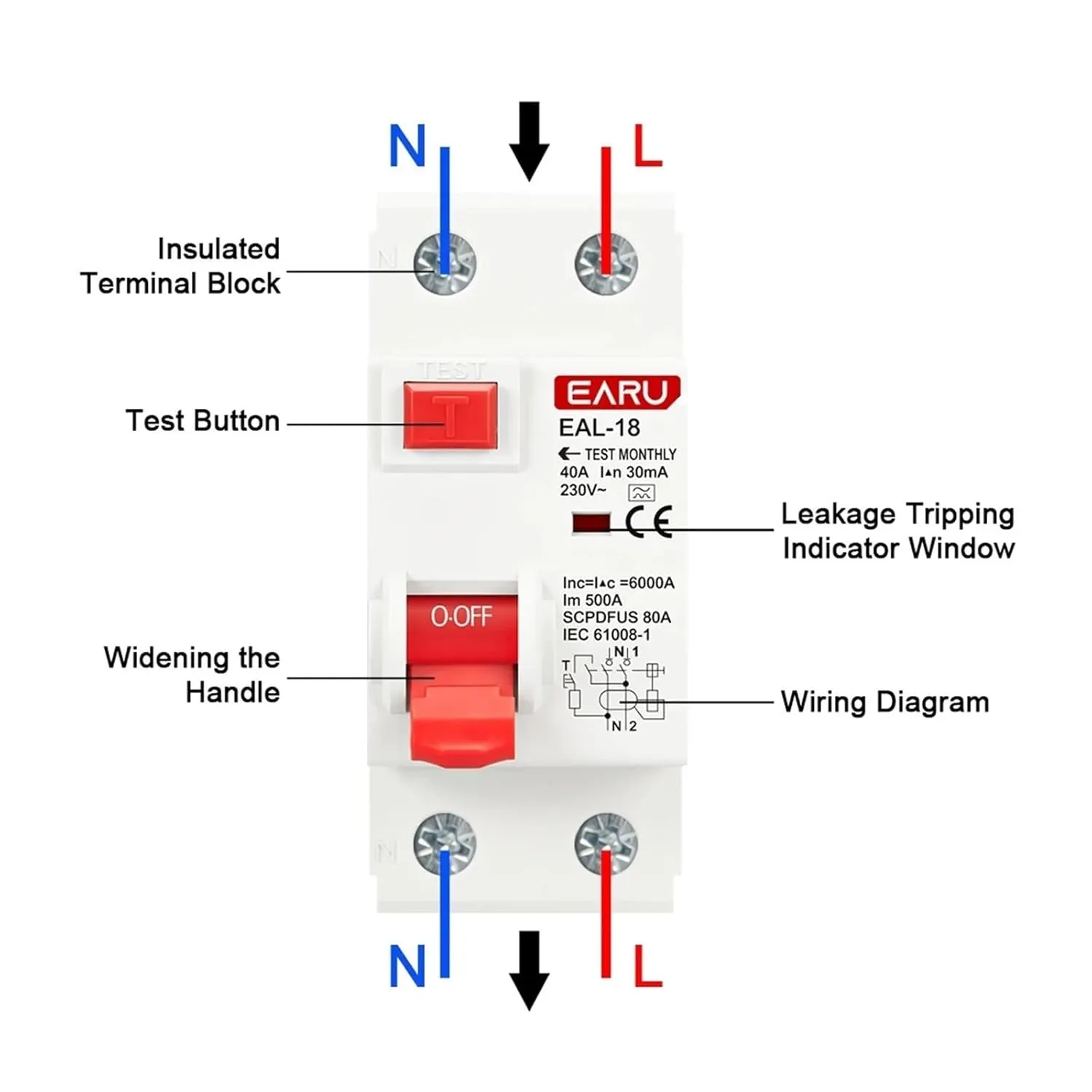

- It is equipped with an energy-saving LED indicator light (red/green dual-color display), which can provide real-time feedback on the circuit's on-off status and fault type, enabling quick problem identification and saving maintenance time. It is suitable for dim industrial environments or complex distribution box layouts.
- 4. Multi-specification current adaptation, durable and shock-resistant
Hign-concerned Chemical : None
Type : Residual Current
Type : RCD
Model Number : RCCB
is_customized : Yes
Is Smart Device : No
Rated Voltage : 220V
Origin : Mainland China
Certification : CE
Breaking Capacity : 6KA
Rated Sensitivity : 10mA 30mA 100mA 300mA
Standard : IEC61008-1

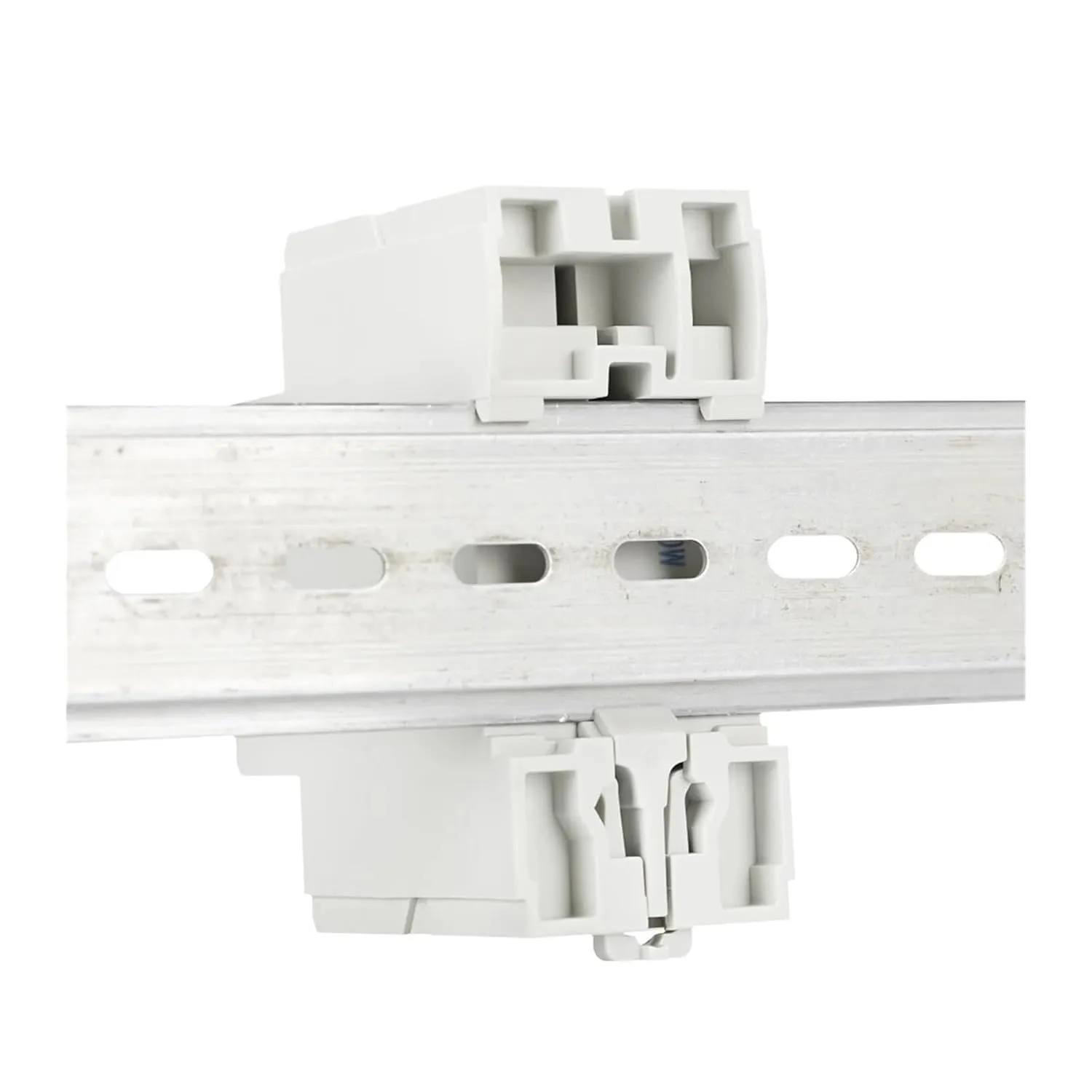

Mounting : Din Rail
Rated Frequency : 50/60Hz
Rated Current : 6A.10A.16A.20A.25A.32A.40A.50A.63A
Poles 1 : 2P
Type of leakage : A Type
Type : Electromagnetic
Material : Flame Retardant Material
Function : Leakage Protection
Rated voltage : 230V
Insulation voltage : 500v
Rated sensitivity : 0.03A 0.1A 0.3A 0.01A
Break time under : 0.1s
Storage temperature : -25- 70
Dielectric test voltage at and ind.Freq.for.1min : 2.5kV
Electrical life and Mechanical life : 4000
Faule current indicator : No
Model Number 2 : ELCB

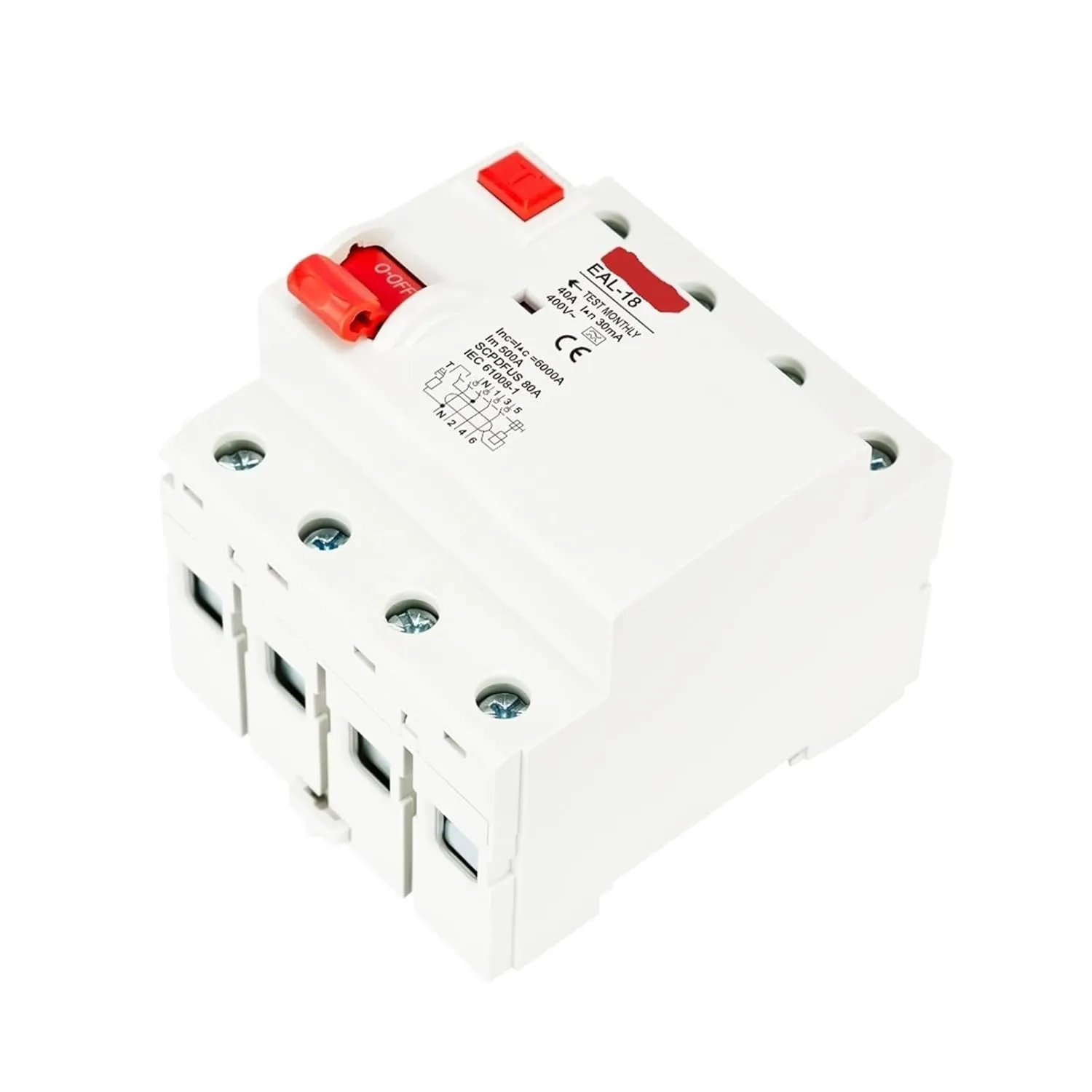

Poles 2 : 4P
- Package Dimensions : 0.39 x 0.39 x 0.39 inches; 10.58 ounces
- Department : unisex-adult
- Date First Available : May 18, 2025
- Manufacturer : DbvrhXmkn
- Country of Origin : China
