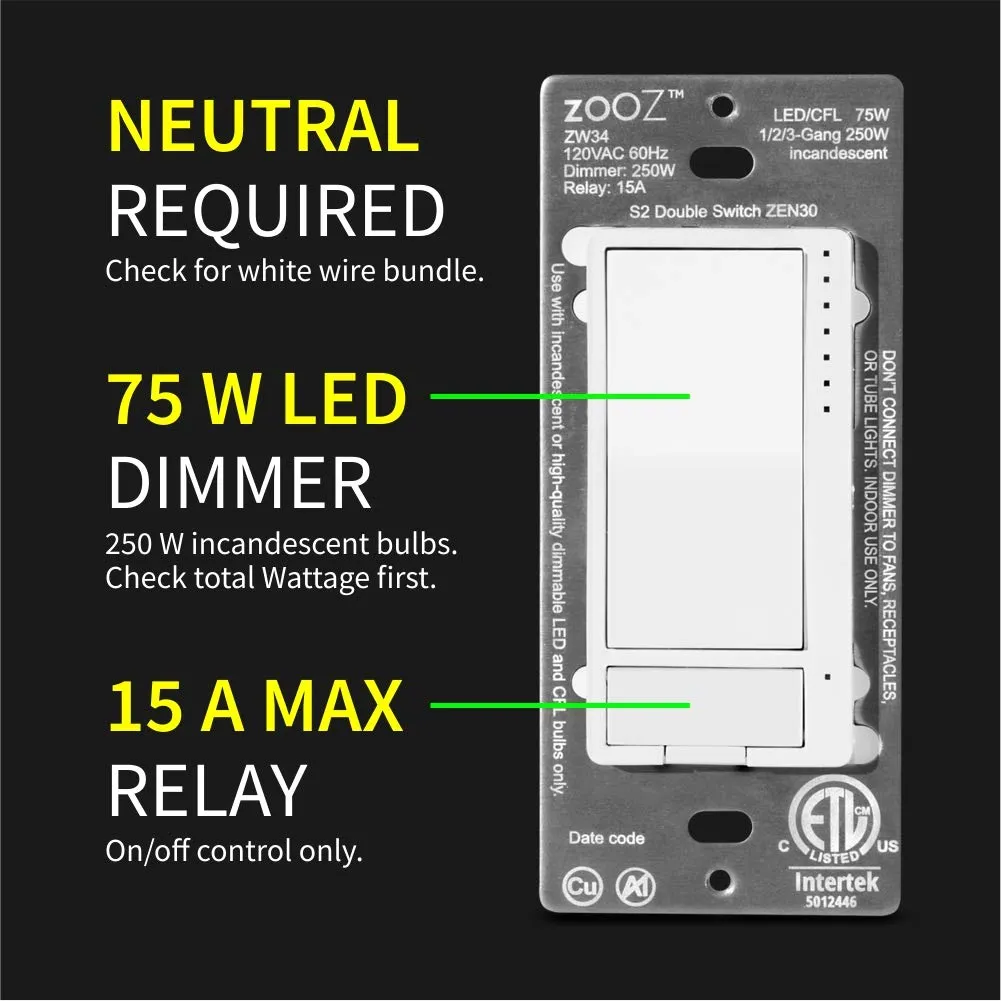

• SMART DOUBLE SWITCH: Control 2 loads independently with just one Double Switch. Dim the lights using the paddles and turn the connected fan on or off using the relay button (NO SPEED CONTROL for the fan). Control each load remotely from your Z-Wave hub (required, sold separately). Alexa is NOT a Z-Wave hub. Does NOT work with Z-Wave alarm panels like ADT, Ring, Vivint, or Alarm.com. Custom driver required for SmartThings, contact seller for details.
• MULTI-FUNCTIONAL DIMMER: Smooth brightness control for incandescent and LED bulbs (up to 75 Watts of LEDs). Smart bulb ready! Double tap to full brightness, adjustable ramp rate, and dimming speed (your hub needs to support advanced setting input). NO DIRECT 3-WAY, only virtual 3-way available. Contact support for details.
• POWERFUL RELAY: Connect any load up to 15A, including ceiling and exhaust fans for reliable on/off control from the relay button and via Z-Wave. Or use the button for scene control (multi-tap supported by select hubs only, contact support before buying).
• NEW 800 SERIES Z-WAVE LONG RANGE: Boost your network with the latest Z-Wave technology that offers more range and faster signal speed than ever before. Your hub (or home automation software) needs to support Z-Wave Long Range for extra reliable direct-to-hub communication. The Double Switch will act as a signal extender in a traditional mesh network.
• HUB COMPATIBILITY: This is an advanced Z-Wave device and it requires an open Z-Wave hub to display correctly. Works best with Z-Box Hub. It was tested to work well with Home Assistant, Hubitat, and on SmartThings with a custom device driver (please go to Zooz support page for details). NOT supported by Vivint, ADT Pulse, Ring, or Alarm.com
• EASY INSTALLATION: Pigtail wires for convenient connections. No side tabs and just 1.1" deep to fit shallow and crowded switch boxes. NEUTRAL WIRE REQUIRED (check before buying). The device is ETL certified and conforms with North American safety standards. Register product for extended 5-year warranty.

NOTE: Check Wattage first: DON'T exceed 75 W of LEDs for the dimmer. Do NOT connect this device to regular or add-on switches in 3-way or 4-way installations. NEUTRAL WIRE REQUIRED.

SPECIFICATIONS:

• Model Number: ZEN30 800LR
• Z-Wave Region: US, MX, CA
• Power: 110-120 V AC, 60 Hz
• Maximum Load for Dimmer: 75 W LED, 250 W incandescent (don't use with tube lights, chandeliers, switched receptacles, or fans)
• Maximum Load for Relay: 15 A
• Z-Wave Range: Up to 100 feet line of sight
• Dimensions: 1.7" x 4.1" x 1.1"
• Operating Temperature: 32-104° F (0-40° C)
• Installation and Use: Indoor only

Will it work with my smart speaker?
Smart speakers are NOT Z-Wave controllers so you will need a compatible Z-Wave hub to control this device with your smart speaker.
Voice-control-compatible Z-Wave hubs include:

• Home Assistant
• SmartThings
• Z-Box Hub
• Hubitat

• Package Dimensions ‏ : ‎ 7.76 x 3.23 x 3.11 inches; 6.38 ounces
• Date First Available ‏ : ‎ January 25, 2020
• Manufacturer ‏ : ‎ ZOOZ
