- Fast heat dissipation; High torque; Strong compatibility; Responsive
- Compatible with Futaba, Jr, Sanwa, HITEC, jumper, FlySky, frsky, etc. RC Transmitter
- High performance programmable digital standard steering gear.
- It can be widely used in robots, robot arms, mountain car and remote control toys.

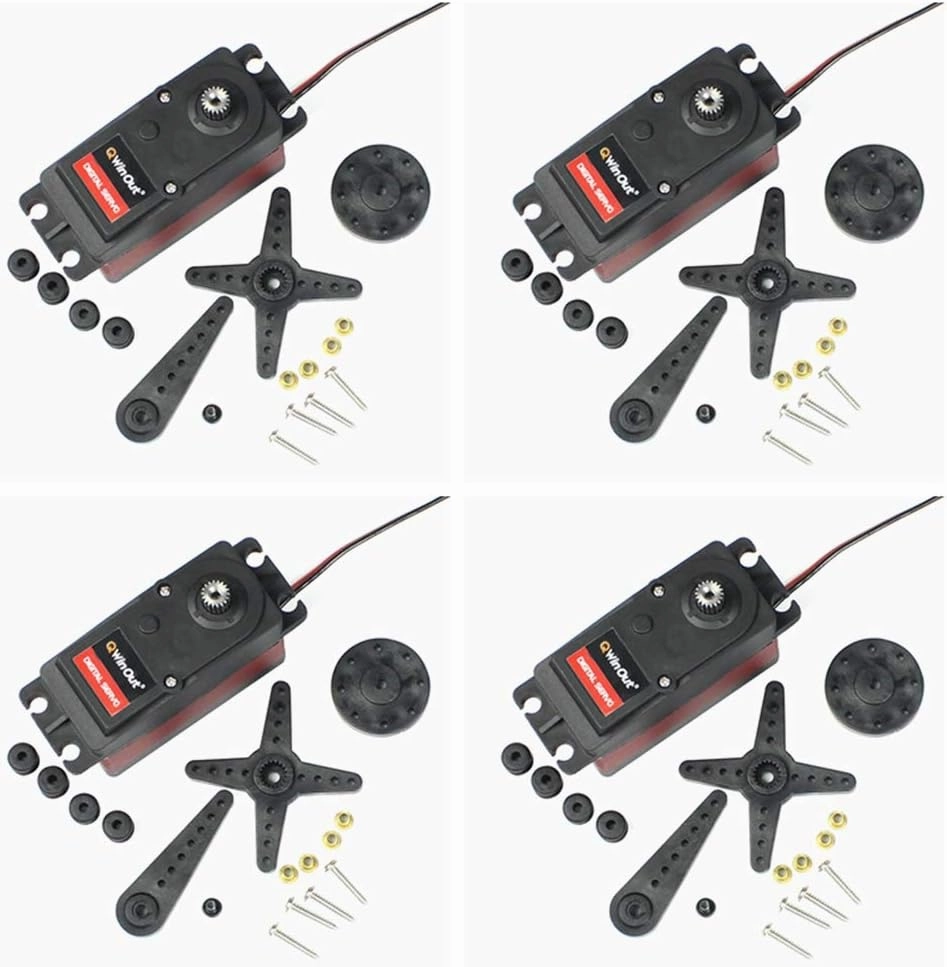

- Each Pack include: Steering gear * 1; Accessory Pack * 1
Brand: QWinOut

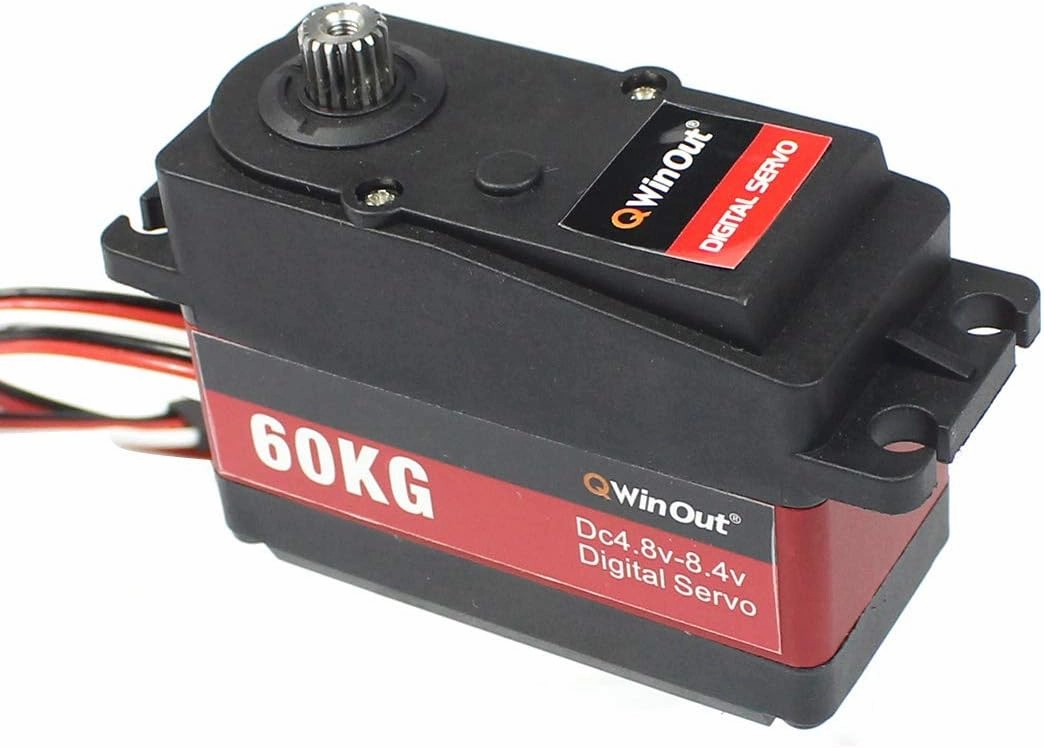

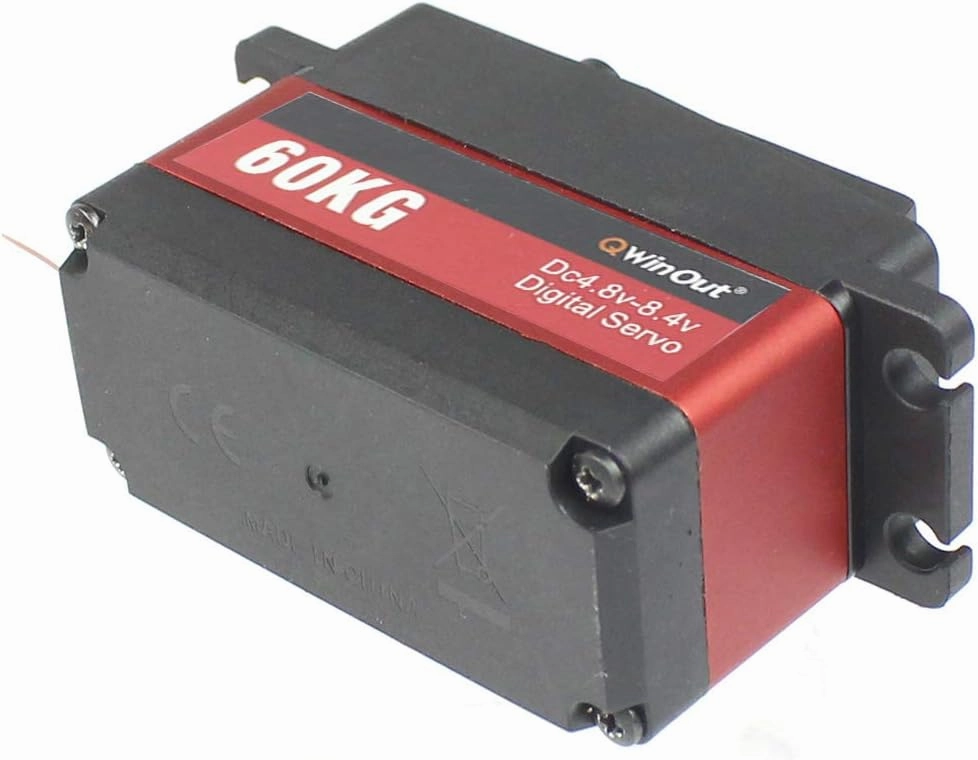

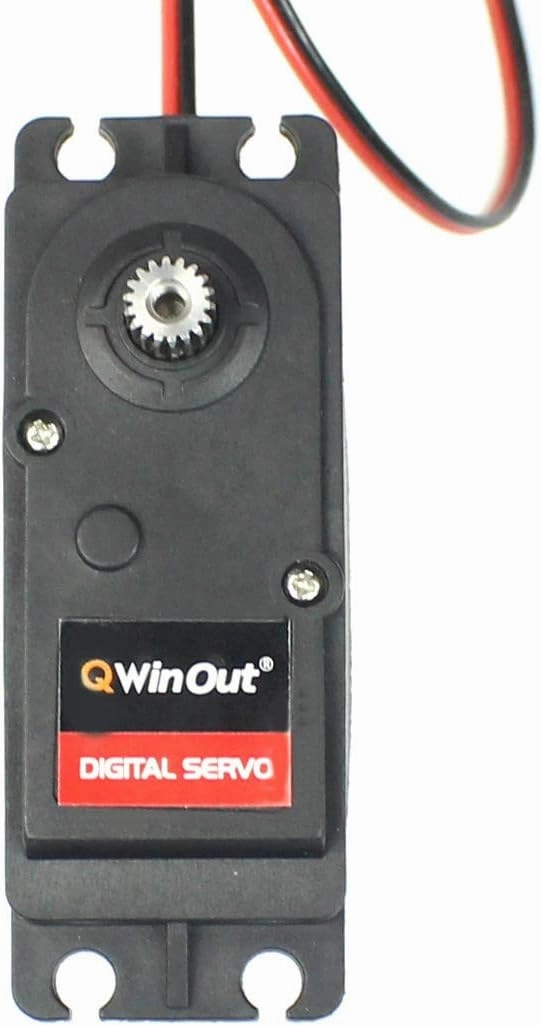

Products Name: 60kg Digital Servo
Color: Black Red
Specification: 180 °/270 °/360 ° (optional)

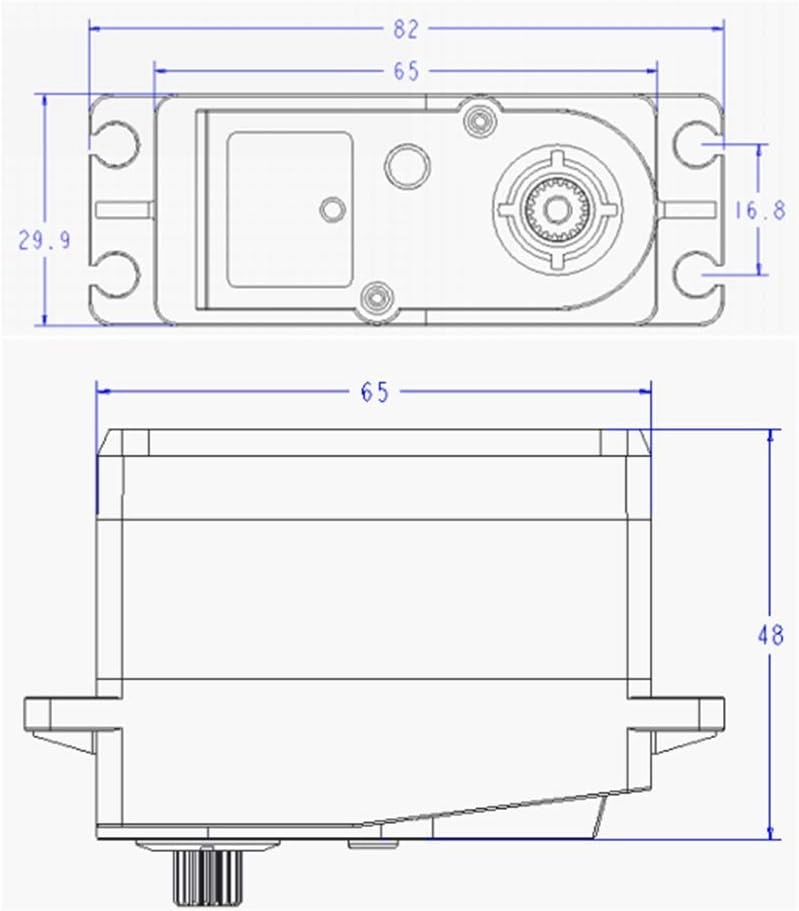

Size: 82 * 48 * 29.9mm
Weight: 162g (excluding accessories)
The best voltage is 7.4v. It is recommended to use 2S battery power supply (6v-8.4v)
Each Pack include:
Steering gear * 1
Accessory Pack * 1
Products Specifcation:
1.Apply Environmental Conditon
Storage Temperature Range: -30°C?80°C
Operating Temperature Range: -25°C?70°C
2.Standard Test Environment
Temperature Range: -25°C?70°C
Humidity Range: 65%±10%
3. Mechanical Specification
Size: 40.0*20.0*37.5mm
Weight: 158g±5%

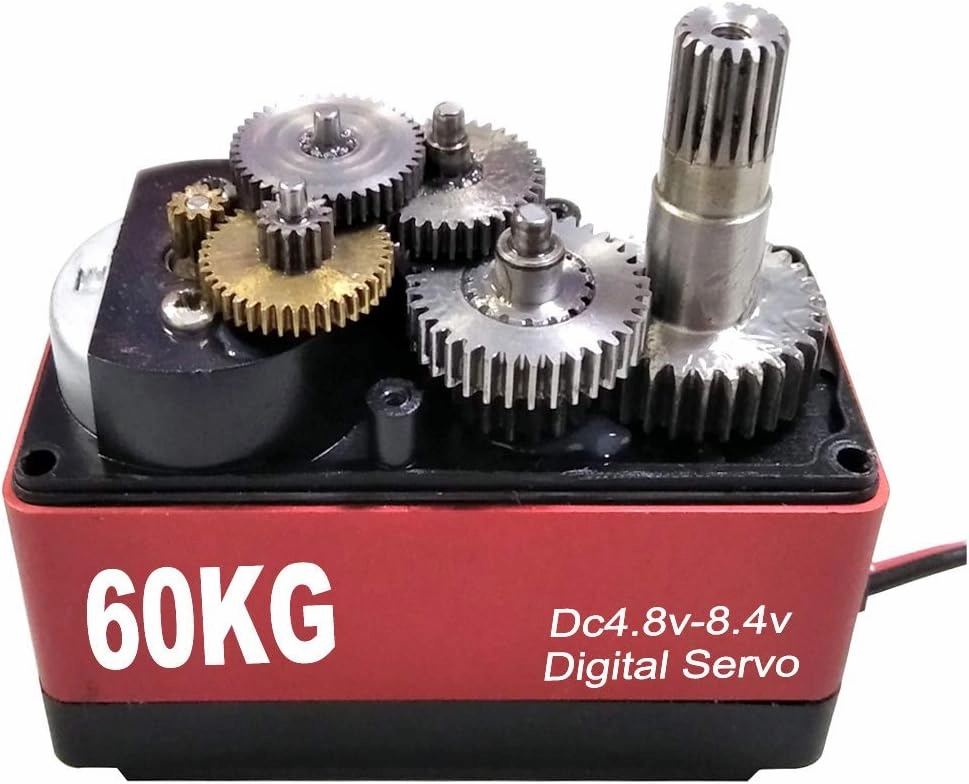

Gear type: 6 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 18T Diameter: 8.1mm
Horn type: Plastic, POM
Case: Engineering plastics(PBT) Aluminum alloy

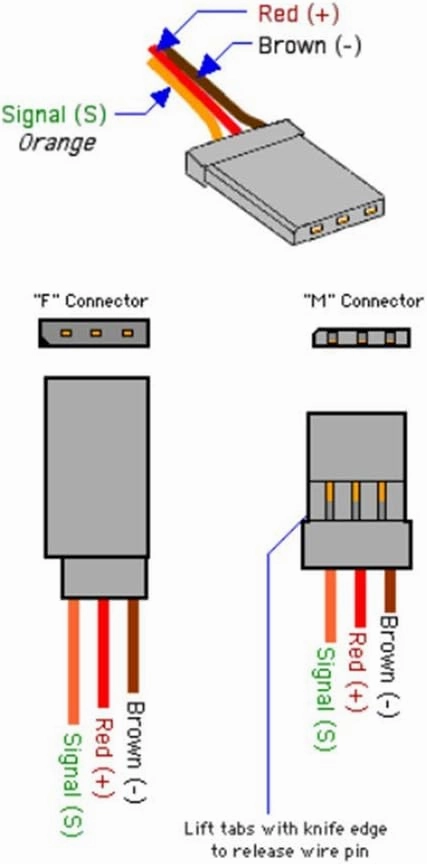

Connector wire: 320mm±5mm
Motor: Carbon brush motor
Splash water resistance
4.Electrical Specification
Operat voltage: 6V;8.4V
Idle current: 5mA; 5mA
No load speed: 0.17sec/60°;0.13sec/60°
Runnig current: 400mA;510mA
Peak stall torque: 58.5kg.cm;70kg.cm
Stall current: 8.5A±10%;10.4A±10%
Working voltage range: 4.8-8.4V
5. Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller

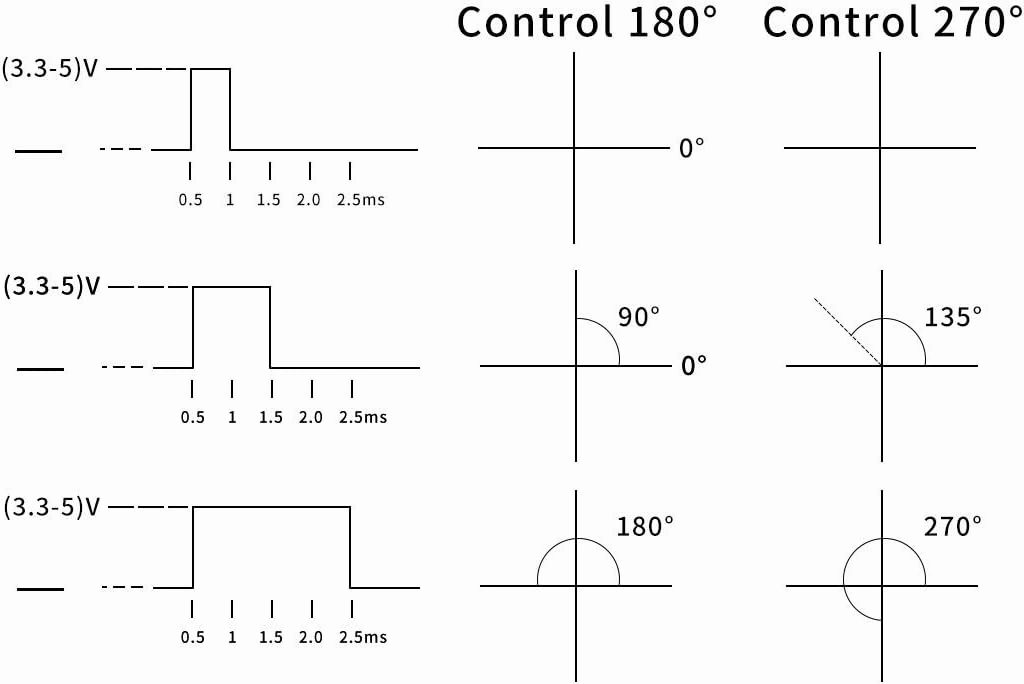

Pulse width range: 500?2500usec
Neutral position: 1500usec
Running degree: 180°±3°(when 500?2500usec)
Dead band width: 5usec
Rotating direction: Counterclockwise (when 1000?2000usec)
