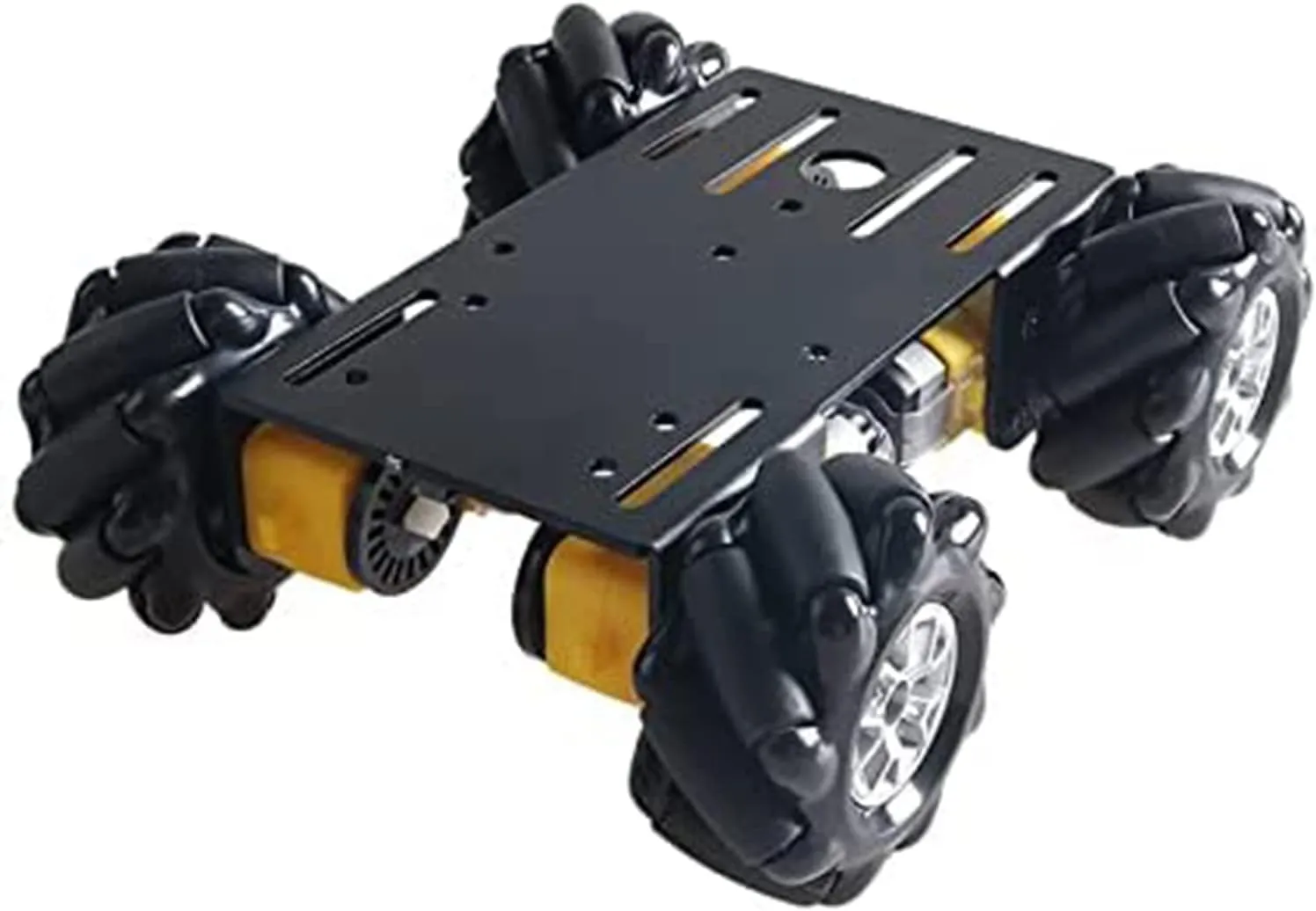

- 【What You Get】: This mecanum wheel robot car chassis named as MC100, which includes 1pc metal plate, 4pcs 60mm mecanum wheels with 4pcs couplings for TT motor, 4pcs DC TT motors with 4pcs encoders for TT motor, screw kit and other part.
- 【Beautiful Design】: The metal plate is made of 2mm aluminum alloy, which is very beautiful and strong. The surface is sandblasted and oxidized, with many mounting holes, which is compatible with service, Arduino UNO R3, NodeMCU and Raspberry pie. Other controller kits can also be used. We can provide the Arduino source code of this car chassis.
- 【Encoder TT DC Motor】: Engine is very important for a car chassis. This smart car chassis is equipped with 4pcs TT DC motors and 4pcs circle encoders. So you can get the speed states or other feedback. This is the best choice for AI robot RoS learning robot kit.
- 【STEAM Good Platform】: This mecanum wheel moving platform is very suitable for the STEAM education. Many schools or education departments choose this car chassis for school student to learn AI robot knowledge. Also, this car chassis can be used for the maker education kit, school robotic competition, or robotics learning.
- 【Rich Manual】: This car chassis is easy to assemble. We also provide the simple manual to remind the installation. The Arduino source code can be found at the manual. If you have any problems with this car chassis, please don’t hesitate to contact us. We will reply you within 24h.
Features:
- The chassis panel is made of 2mm aluminum alloy, which is strong;
- The robot brings four 60mm mecanum omnidirectional wheels, the robot can move forward and backward, turn left, turn right, etc.;
- The robot is equipped with 4 high-torque TT motors, which provides sufficient horsepower for the chassis and the chassis travels fast;
- It is a cost-effective omnidirectional wheel chassis, suitable for learning, competition, DIY, etc.
- In order to facilitate transportation, the product is not assembled.
MC100 Metal Smart Car Chassis Parameters:
- Name: MC100 4WD metal smart car chassis
- Panel material: 2mm aluminum alloy
- Surface treatment: Sandblasting oxidation
- Panel color: black / blue

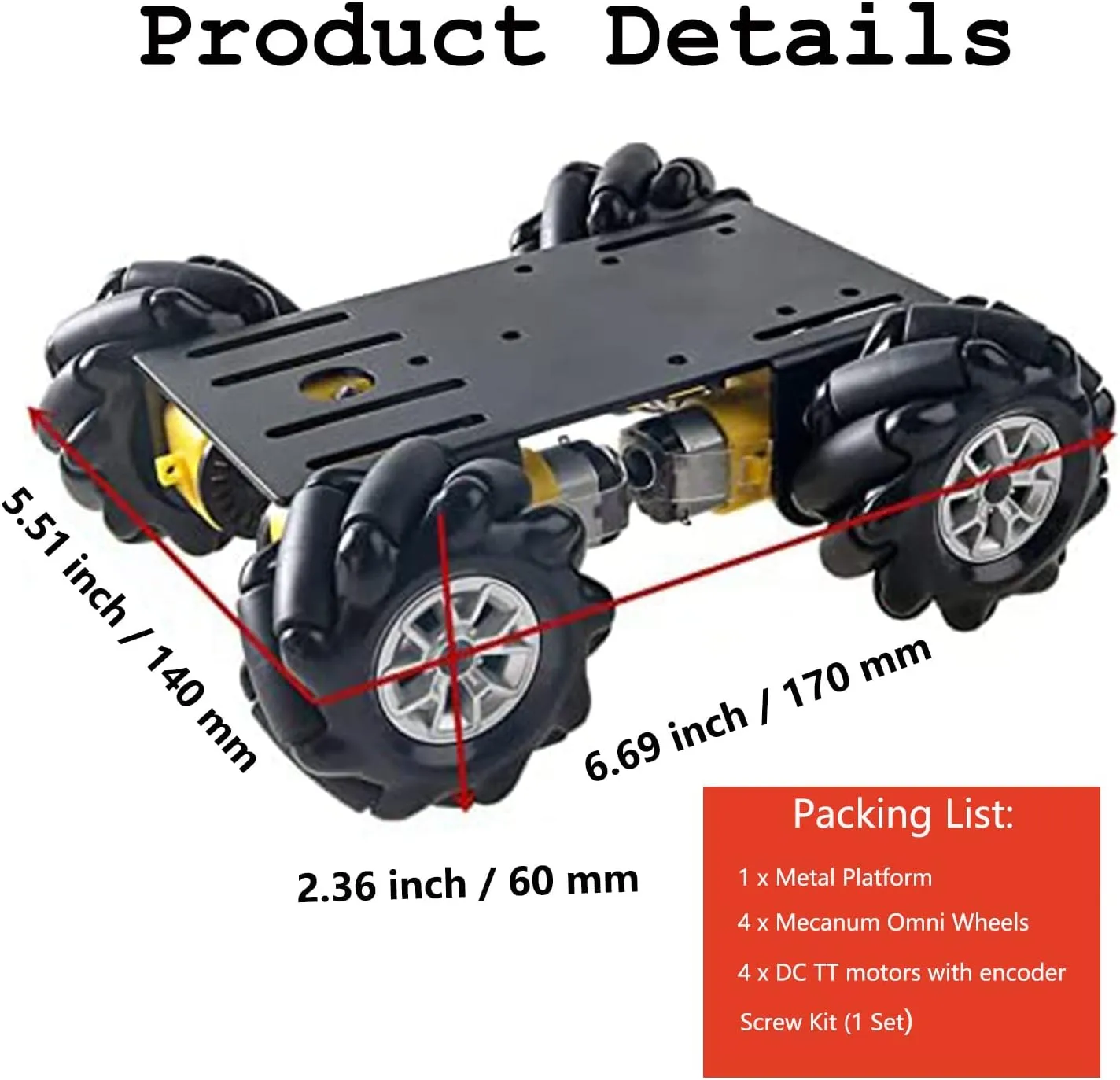

- Size: 170 * 140 * 60 mm / 6.69 * 5.51 * 2.36 inch (length * width * height)
- Motor: TT motor
- Wheels: 60mm mecanum omnidirectional wheel
- Weight: about 380g / 0.84lb
60mm Mecanum Omnidirectional Wheel:
- Name: 60mm Mecanum Wheel
- Color: black
- Material: plastic
- Inner wheel diameter: 35.5mm / 1.4 inch
- Outer wheel diameter: 60mm / 2.4 inch
- Thickness: 27mm / 1.1 inch
- Number of sub-rounds: 9
- Load-bearing: 10kg (4 functions)
TT Motor Parameters:
- Voltage: 6V (recommended at 3-6V best)
- Motor specifications: 1:48, faster
- No-load current: ≤250mA
- No-load speed: 240±10% rpm
Shipping list:
- 1 × Metal panel
- 4 × 60mm omni wheel
- 4 × TT motor with 4pcs encoders
- Screw kit and other part
