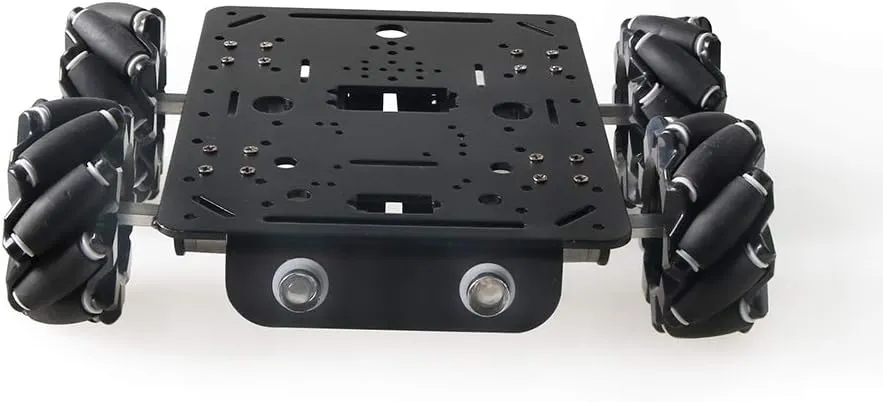

- 【What You will Get】: This mecanum wheel robot car chassis named as MC400, which includes 1pcs metal plate, 4pcs 80mm mecanum wheels with 4pcs couplings for DC encoder motor, 4pcs DC encoder motors with 4pcs encoders, screw kit and other part.
- 【Beautiful Design】: The plate is metal, which is very beautiful, and is made of 3mm aluminum alloy, which is strong. The surface is sandblasting oxidation, and has many installation holes, which can be compatible with services, Arduino UNO R3, NodeMCU, Raspberry pie. Also can use other controller kit. We can provide the Arduino source code for this car chassis.
- 【Encoder DC Motor】: Engine is very important for a car chassis. This smart car chassis is equipped with 4pcs DC motors with 4pcs circle encoder. So you can get the speed states or other feedback. It is the best choice for AI robot RoS learning robotic kit.
- 【STEAM Good Platform】: This mecanum wheel moving platform is very suitable for the STEAM education. Many schools or education departments choose this car chassis for school student to learn AI robot knowledge. Also, this car chassis can be used for the maker education kit, school robotic competition, or robotics learning.
- 【Rich Manual】: This car chassis is easy to assemble. We also provide the simple manual to remind the installation. The Arduino source code can be found at the manual. If have any problem, please don’t hesitate to contact us. We will reply you within 24h.
Features:
- The chassis panel is made of 3mm aluminum alloy, which is strong;
- The robot brings four 60mm mecanum omnidirectional wheels, the robot can move forward and backward, turn left, turn right, etc .;
- The robot is equipped with 4 high-torque DC encoder motors, which provides sufficient horsepower for the chassis and the chassis travels fast;
- It is a cost-effective omnidirectional wheel chassis, suitable for learning, competition DIY, etc.Tank
- In order to facilitate transportation, the product is not assembled.
MC400 metal smart car chassis parameters:
- Name: MC400 4WD metal smart car chassis
- Panel material: 3mm aluminum alloy
- Surface treatment: sandblasting oxidation
- Panel color: silver / black / blue
- Size: 150 * 200 * 8 0mm (length * width * height)
- Motor: DC encoder motor
- 80mm Mecanum Wheel Parameters:
- Name: Mecanum Wheel
- Weight: 120 g(single)
- Inner diameter: 6.5mm
- Outer wheel diameter: 80mm
- Thickness: 37mm
- Number of sub-wheels: 9
- Bearing capacity: can bear 10kg(4 together)
Motor Parameters
- Name: 25mm gear motor
- Output speed: 150±10%rpm
- No_load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated current: 1200mA (Max)
- Noise: 56dB
- Working voltage: 9-12V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size:M3.0
- Dia. Of Shaft phi 4mm, D3.5
Encoder parameters:
- Type: AB-phase incremental Hall encoder
