- Best in class protection with protect-or-disconnect and smart guard active over-under voltage monitoring
- Convenient and innovative USB charging with a spot to rest a phone or tablet
- Circle of protection displays protection, wiring, and voltage status
- Rfi-emi AC filtering
- 2 high capacity USB ports, 6 AC outlets, charging station built-in

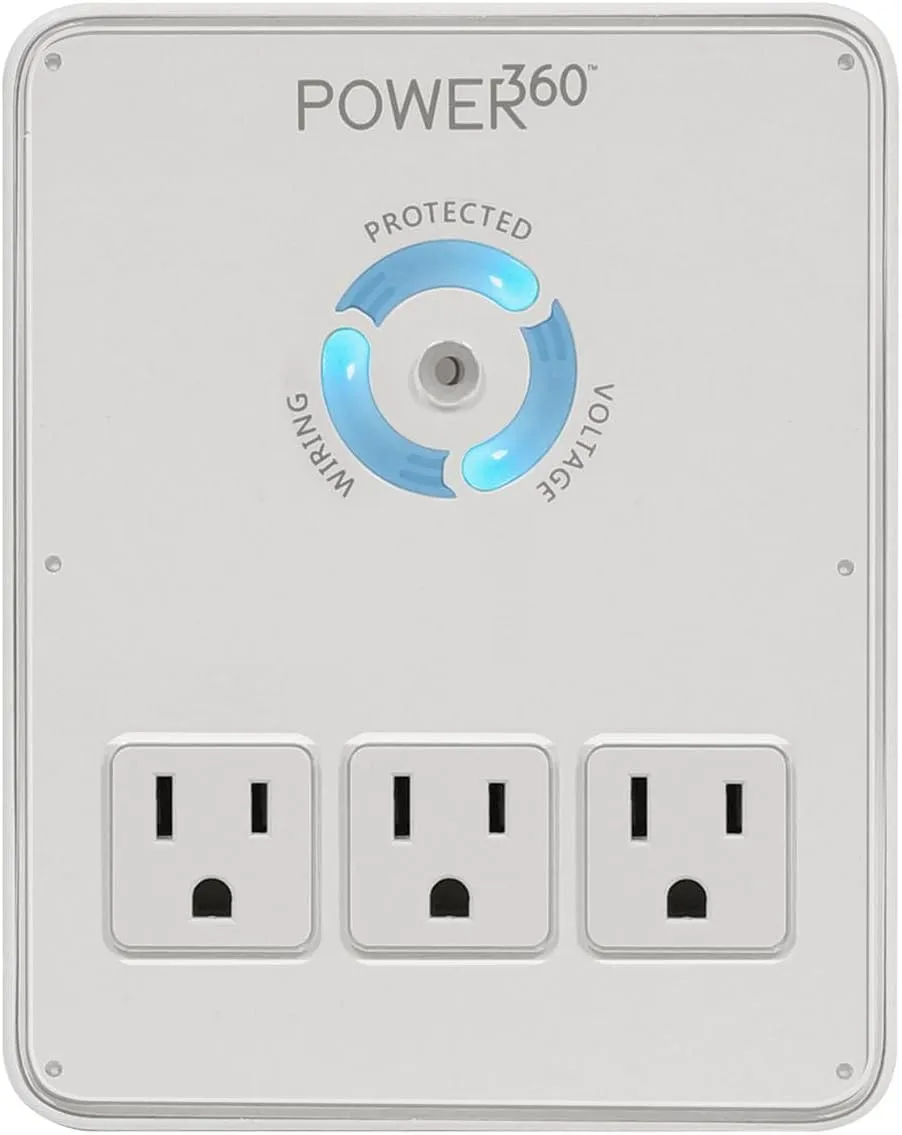

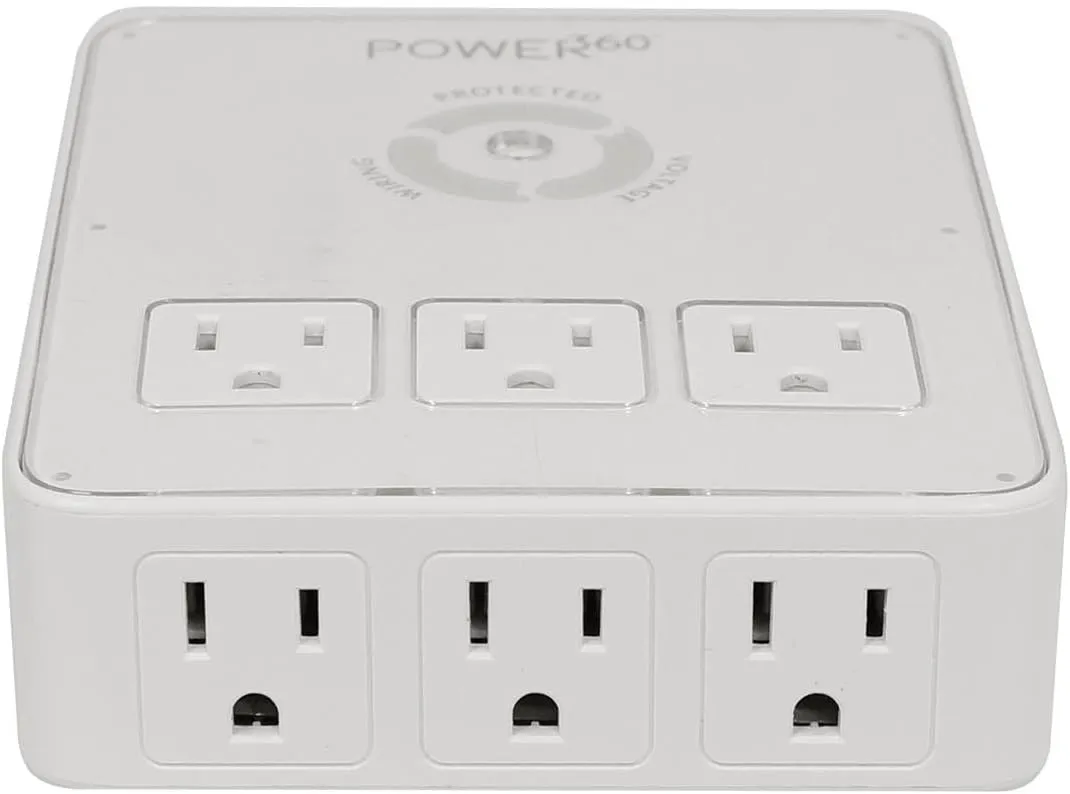

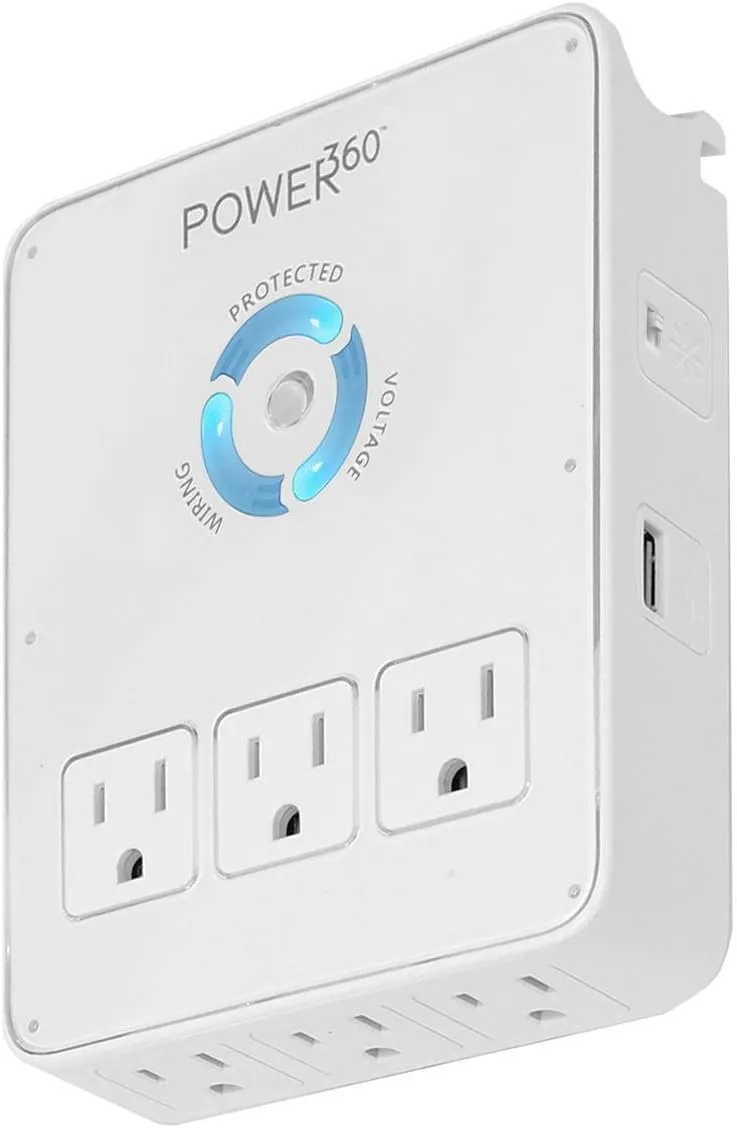

The Panamax p360-dock features a convenient charging cradle accommodates two mobile phone devices or one tablet for convenient charging. Line voltage: 120v. Number of outlets 6, all 6 outlets filtered and surge protected. Control: On-off control to all outlets through power switch. Compliance: UL 1449 vpr (pending ul) 500 v. USB charging: 2 high capacity USB ports. AC protection technology: Protect or disconnect plus smart guard, active over-under voltage monitoring, l-n, l-g, n-g protection modes, automatic voltage shutoff. Under voltage shutoff: 95 vac /- 5 vac. Over-voltage shutoff: 140 vac /- 7 vac. Maximum current rating: 15a. Dimensions: 6.1" x 5.1" x 2.6". Energy dissipation: 1080 j. Usb: 2 USB type-a, output voltage 5.0vdc /- 0.5vdc, output current 1 a max per port 2 a max.
