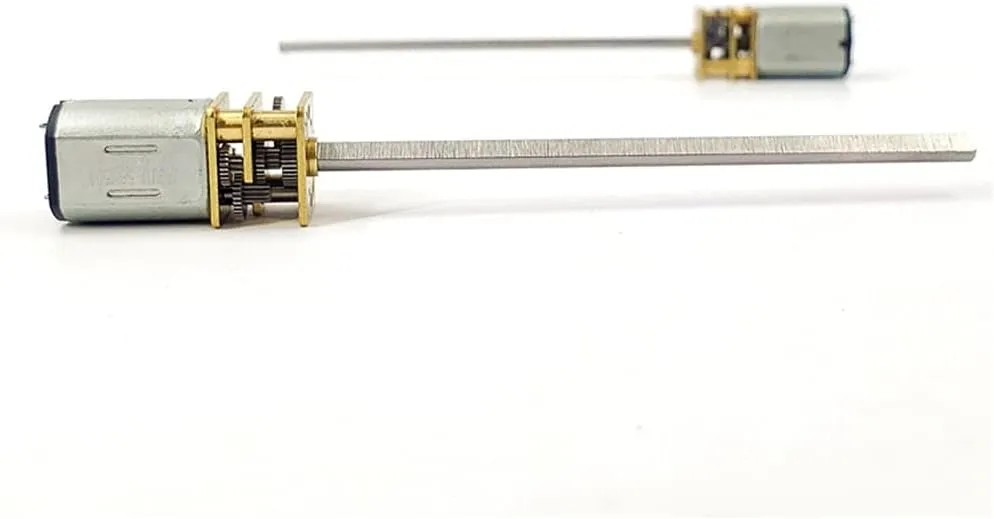

Specifications:
Rated voltage: DC 6V
Motor Specifications: 10*12*15 MM (N20 motor)
Gear box Specifications: 10*12 MM
Output shaft diameter: 3MM (with flat position 2.5MM)
Output shaft length: 66.6 MM
Weight: 14.5 g
No-load current: 46MA
Power on the test machine, the sound is soft, the power is good, and the quality is pretty good. For DC brushed motors, the speed of the motor changes with the voltage. We test its parameters under other voltages: (There may be slight deviations, please refer to the actual product)
Test data:
Voltage: DC1.5V No-load current: 25MA No-load speed: 16RPM
Voltage: DC3V No-load current: 33MA No-load speed: 33RPM
Voltage: DC6V No-load current: 46MA No-load speed: 66RPM
Package includes:
1PCS * DC Motor
Item specifics:
Usage: BoAt,car,Home Appliance,Toy model
Model number: N20 Motor
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 2
Type: Micro Motor
Certification: CCC,ROHS
Origin: Mainland China
Voltage: DC 6V
Size: 10*12*15 MM
Shaft length: 66mm
Shaft diameter: 3MM (with flat position 2.5MM)
Speed: 66RPM
