- the valve returns to a fully closed state if power is lost.
- Reliable Performance: Built-in limit switches and a capacitor return mechanism ensure safe and uninterrupted operation even in the event of a power failure.
- User-Friendly Design: The valve has an exquisite appearance with a switch indicator window, allowing for a visual check of the valve's on/off status, giving an intuitive grasp of the valve's operation;
- Diverse Applications: suitable for automatic control systems, air conditioning, or industrial equipment, offering reliable performance and efficiency; it automatically cuts off power once fully open or fully closed, reducing the likelihood of overheating.
- Long Lifespan: cycles means it is designed for longevity and durability.
******************************************************************************************

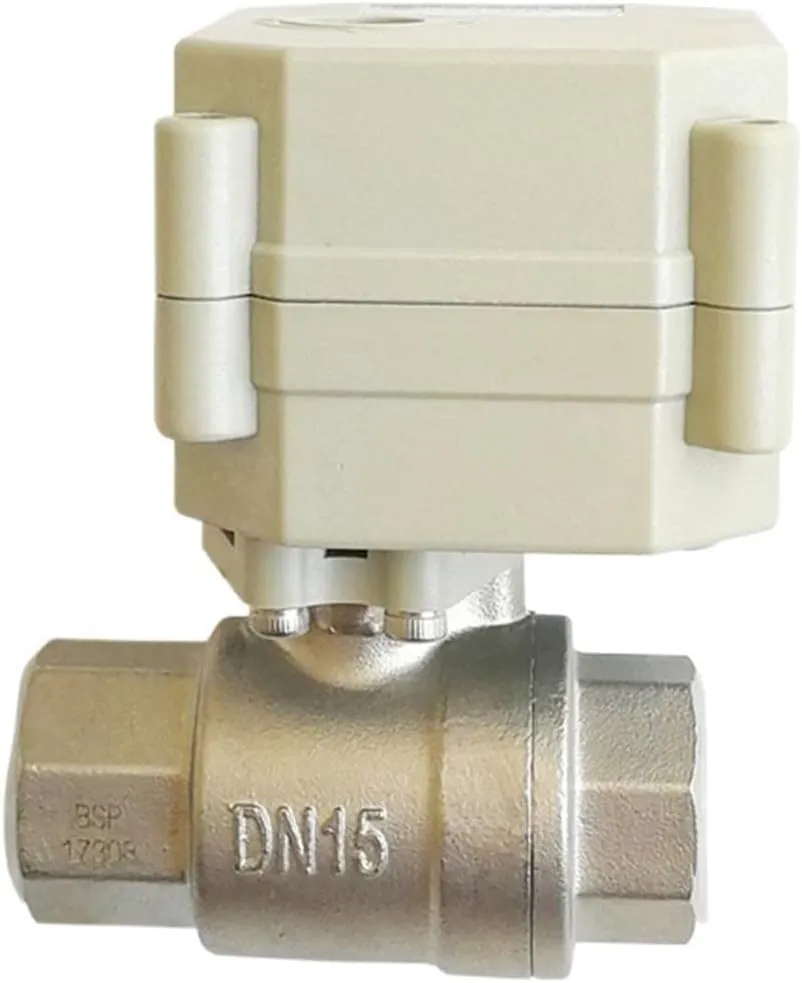

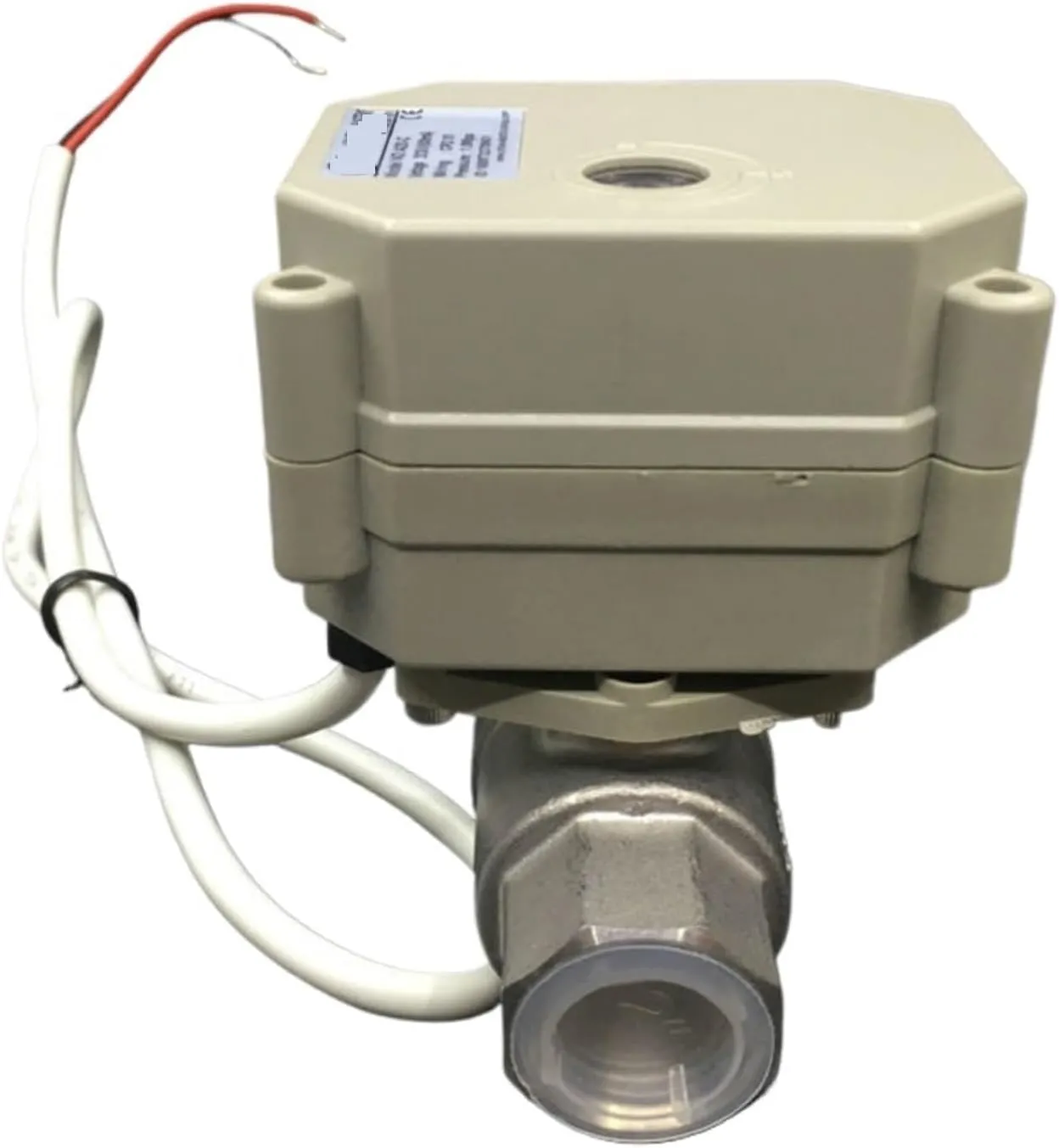

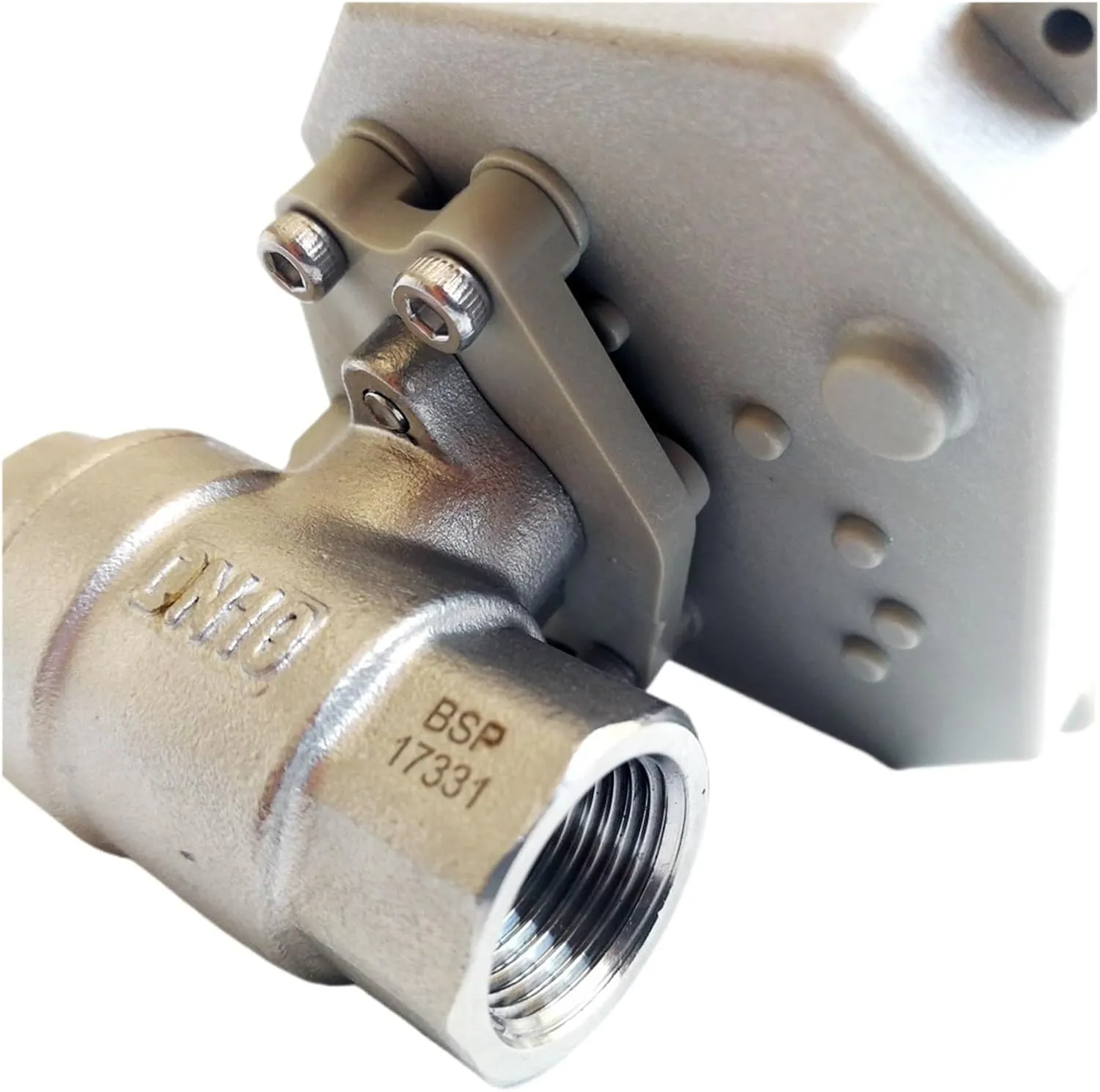

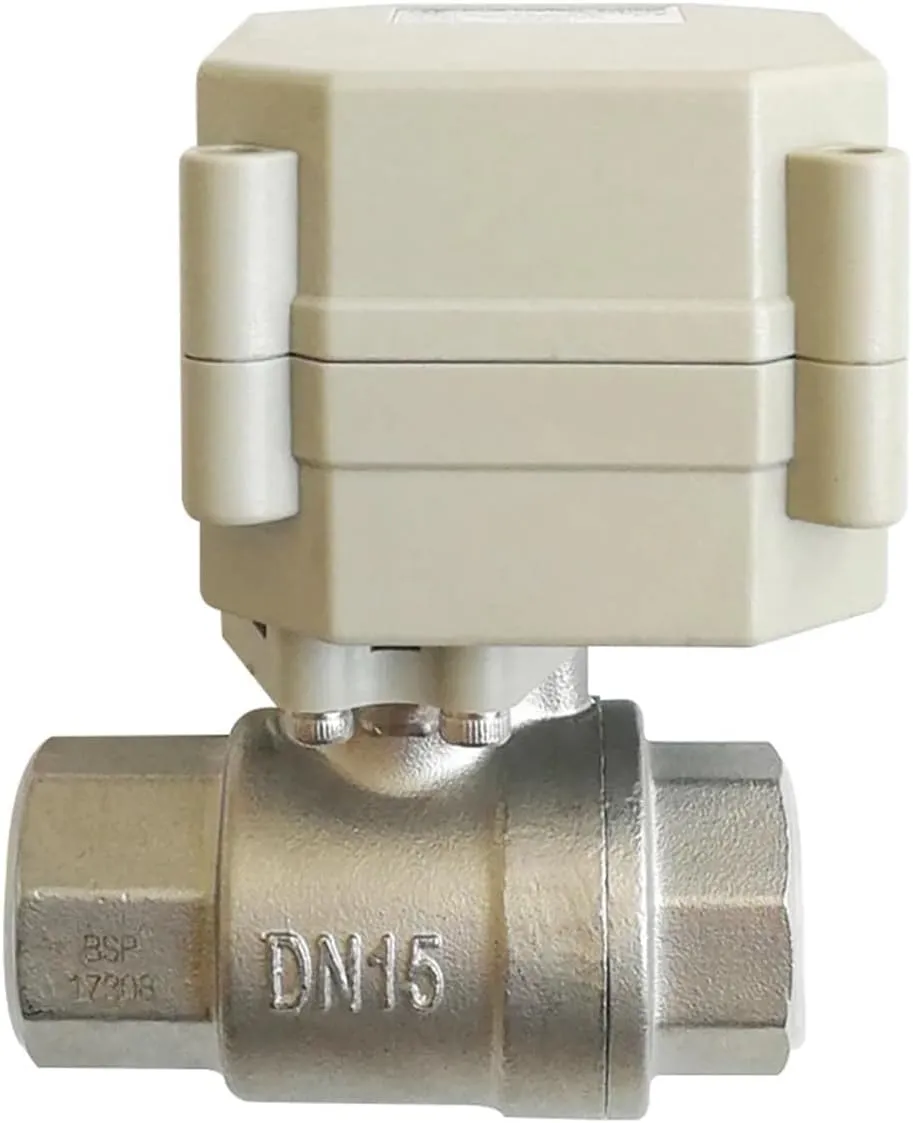

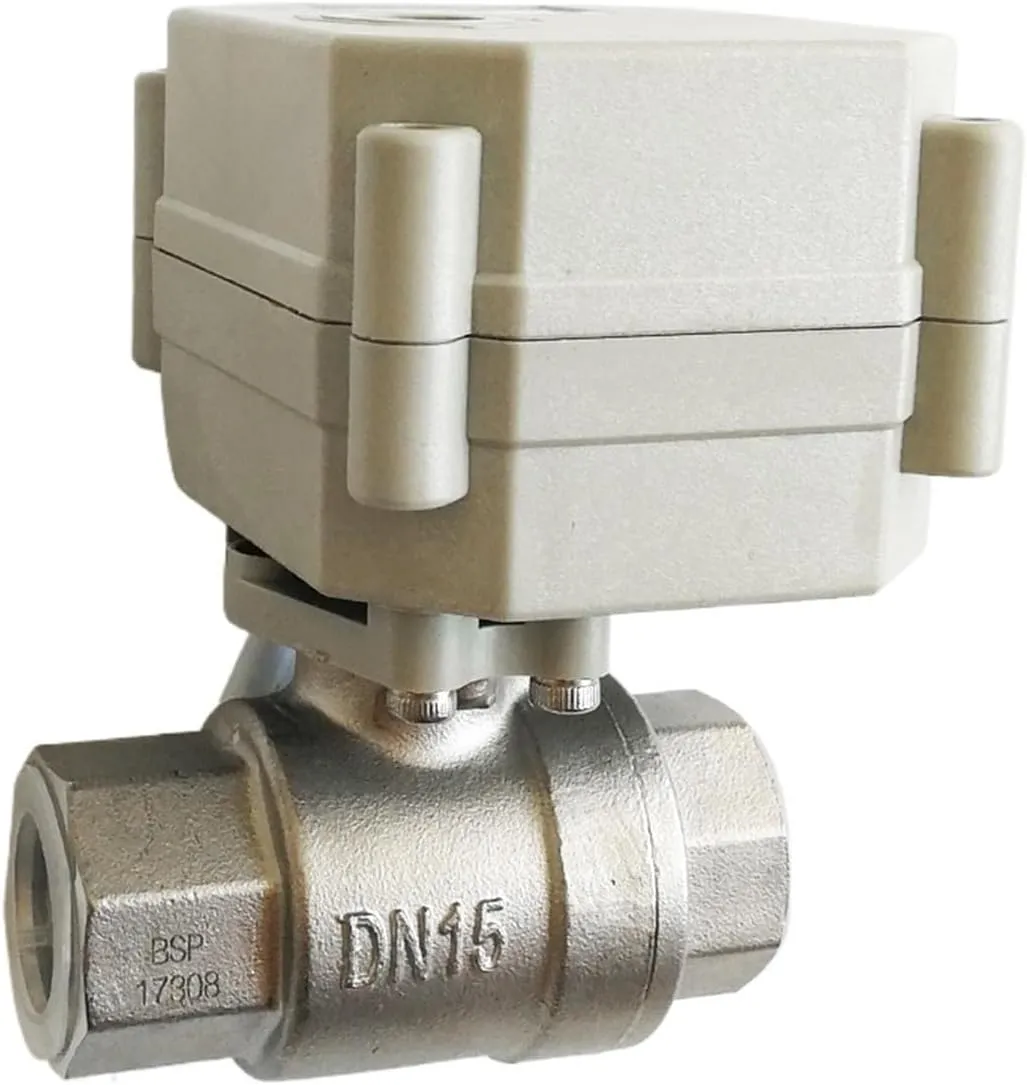

Description:
Product size:BSP/NPT 1/2", DN15
Valve Body Material:Stainless Steel 304
Working Voltage:DC12V/24V
Open/close Time:5 Sec
Wiring Control Methods:CR2 01 CR3 01 CR5 01 CR7 02(Optional)
Maximum Working Pressure:1.0MPa
Circulation Medium:Fluid, Air
Working Current:Less Than500mA
Life time:100,000 times
Actuator Material:Engineering Plastics
Sealing Material:EPDM &PTFE
Actuator Rotation90
Max. Torque Force:2N.M
Cable Length:0.5m
Environment Temperature:-15°~50°
Liquid Temperature: 0°~100°
Manual Override:No
Indicator:Yes
Protection Class:IP67
******************************************************************************************
==========
Actuator Mode : With Instruction
Structure : Ball
Port Size : DN15 1/2"
Media : Water
Material : Stainless Steel
Temperature of Media : 0-100 Degree C
Power : DC12V/24V
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : TF15-S2-C
Power Source : DC
Is Smart Device : no
voltage : DC12V/24V
valve size : DN15
on/off time : 5 sec
control wires : 2/3/5/7 wires
actuator torque : 2 Nm
pressure : 1.0 Mpa
Thread : BSP or NPT
