- High Performance: This micro 2g servo is featuring super wear - resistant precision gears and a coreless motor, make it runs fast and has low power consumption
- Digital Servo: 2g digital servo, high sensitivity, stable and low noise
- Stall Torque & Speed: 0.08 sec/60 speed, 0.2 kg-cm torque
- Universal Compatibility: Features a standard Futaba/JR plug, making it compatible with most RC systems, such as Futaba, JR, SANWA, Hitec and other remote control systems, and includes horns and screws for easy installation
- Application Scenario: 2.1g digital servo compatible with 1/24 SCX24/C10/JLU/B17/RC Helicopters, small arduino cars and robots, and other DIY models.
Description:
Model: DM-S0020
Operating Voltage: 4.8V ~ 6.0V (Recommend 5V)
Speed: 0.08 sec/60 @ 4.8V
Torque: 0.2 kg-cm @ 4.8V
Running Current: 35mA
Idle Current: 4mA
Control System: PWM
Pulse Width Range: 500→2500 μsec
Angle: 180°±10° (PWM 500→2500 μsec)
Neutral Position: 1500 μsec
Motor: Coreless
Gear: POM/Plastic
Plug: JR connector
Wire Connection: brown(-), red ( ), orange(S)
Compatible with Futaba, JR, SANWA, Hitec etc.
Weight: 2.1g
Size: 16.2*8.2*16.5mm (0.63×0.32×0.64 in)
Connector Wire Length: 15cm (5.91 in)
Package Includes:

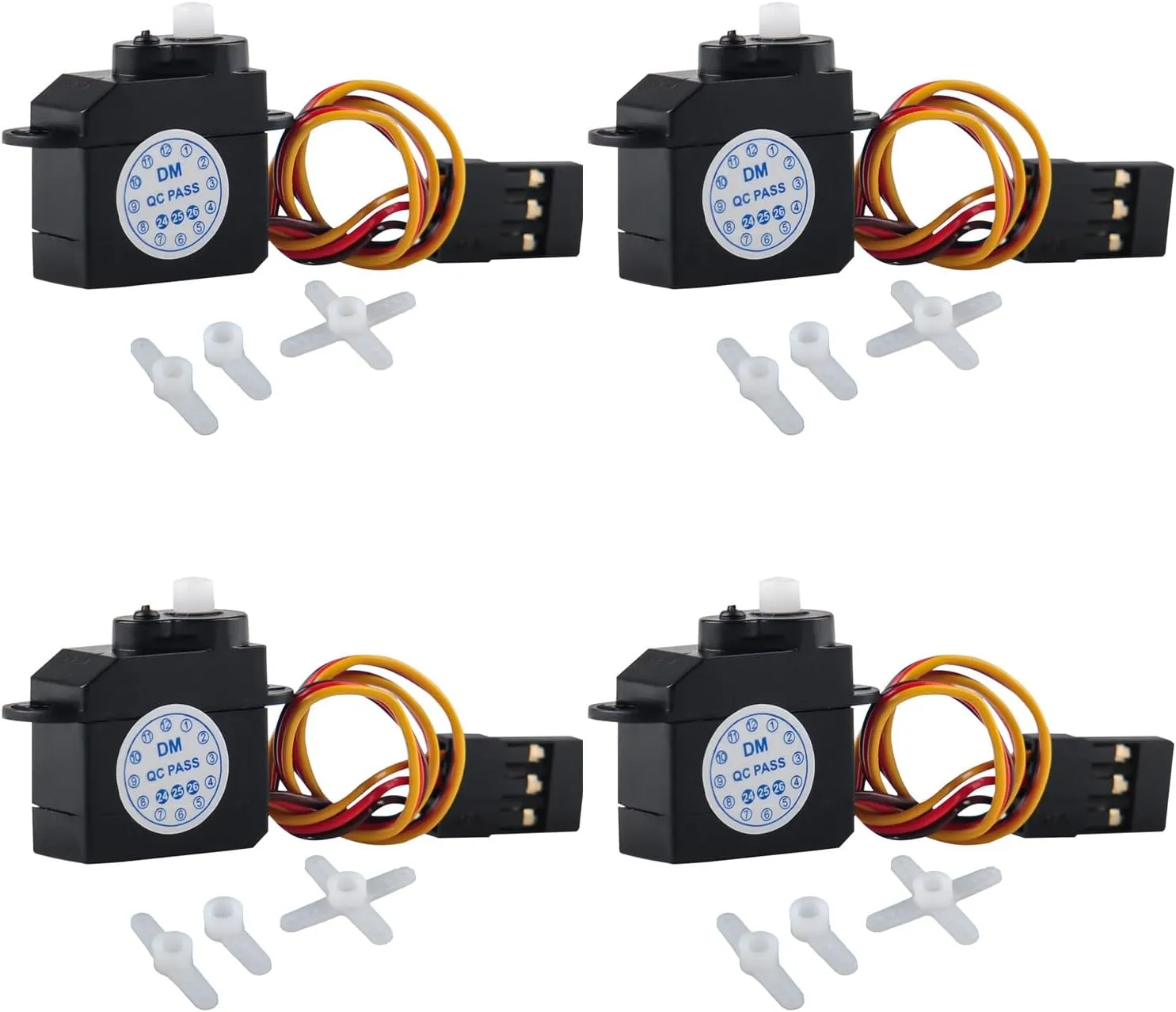

4 X DM-S0020 2.1g Servo
4 X Servo Accessories
