- 11KG digital servo motor, coreless motor mini servo programmable for Arduino RC Car
- All metal servo, the accessories and connecting wires are not all metal
- Operating voltage 4.8V-8.4V, signal voltage 3.0-5.0V; Signal Period: 20ms, Pulse Width: 500～2500usec
- Peak stall torque: 6.5kg.cm at 4.8V; 8.5kg.cm at 6.0V; 11.5kg.cm at 7.4V; 13.5kg.cm at 8.4V
- Running degree: 270°±3° (when 500～2500usec)
- What you will get: 1 piece 11kg digital servo
DIYmall High Torque 11KG Mini All-metal Digital Servo
Apply Environmental Conditon
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Standard Test Environment
Temperature Range: -25°C～70°C
Humidity Range: 65%±10%
Mechanical Specification
Size: 23.0*26.3*12mm
Weight: 22g±5%

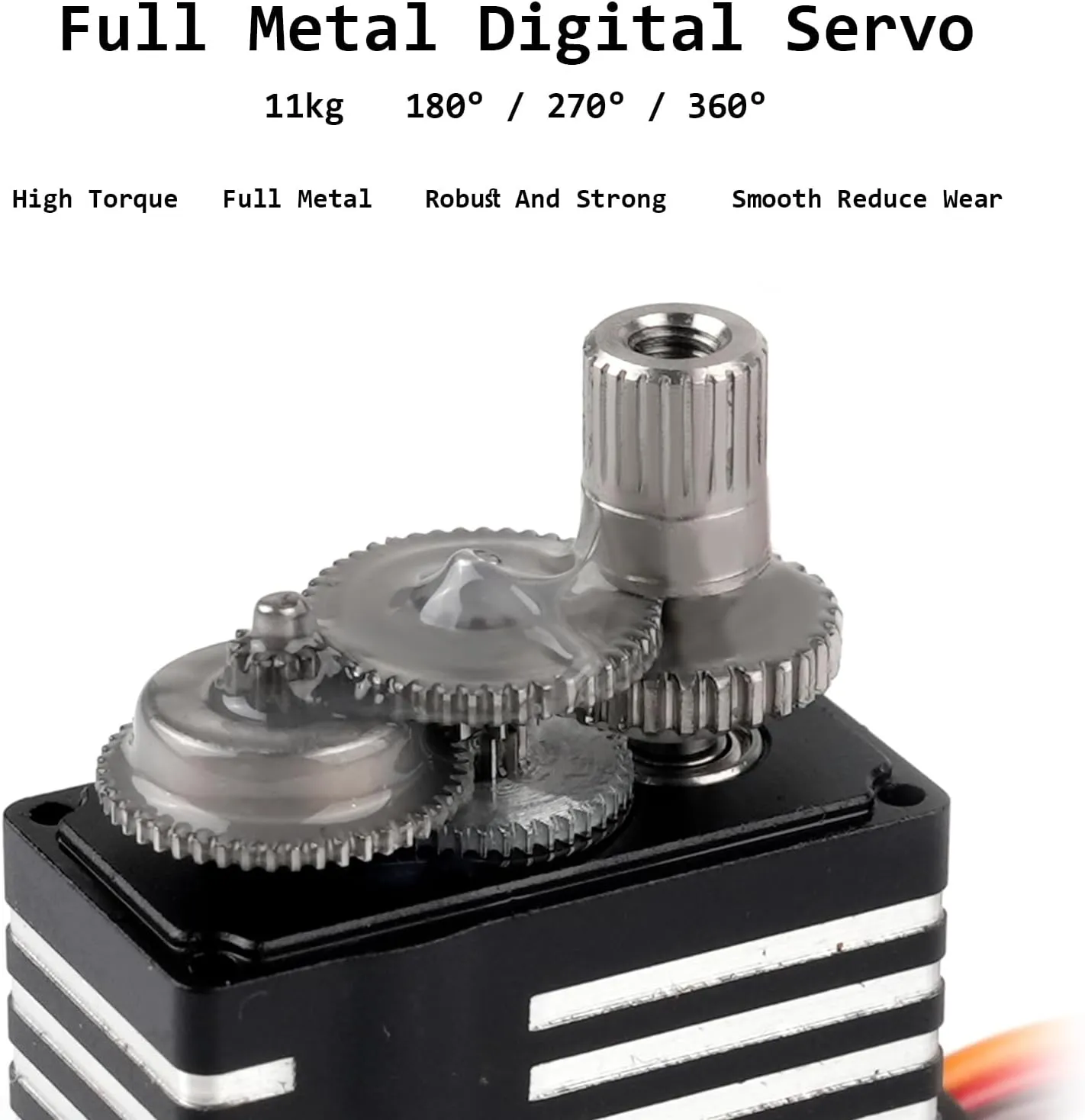

Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 25T; Diameter: 5.0mm
Horn type Plastic, POM
Case Aluminum alloy
Connector wire 250mm±5mm
Motor Coreless high speed motor
Splash water resistance IP65

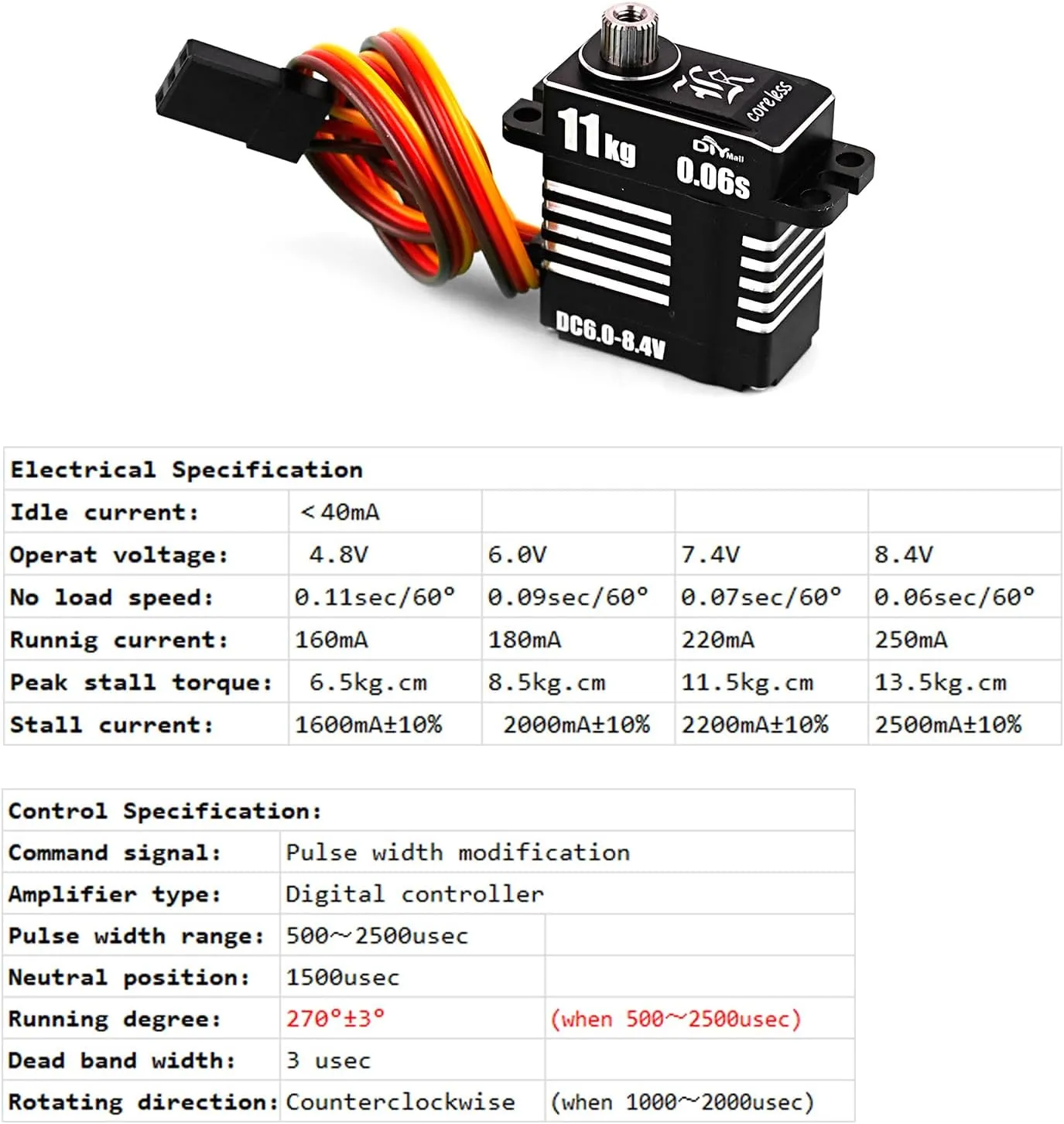

Electrical Specification
Idle current: ＜40mA
Operat voltage: 4.8V 6.0V 7.4V 8.4V
No load speed: 0.11sec/60° 0.09sec/60° 0.07sec/60° 0.06sec/60°
Runnig current: 160mA 180mA 220mA 250mA
Peak stall torque: 6.5kg.cm 8.5kg.cm 11.5kg.cm 13.5kg.cm
Stall current: 1600mA±10% 2000mA±10% 2200mA±10% 2500mA±10%
Control Specification:
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 270°±3°(when 500～2500usec)
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

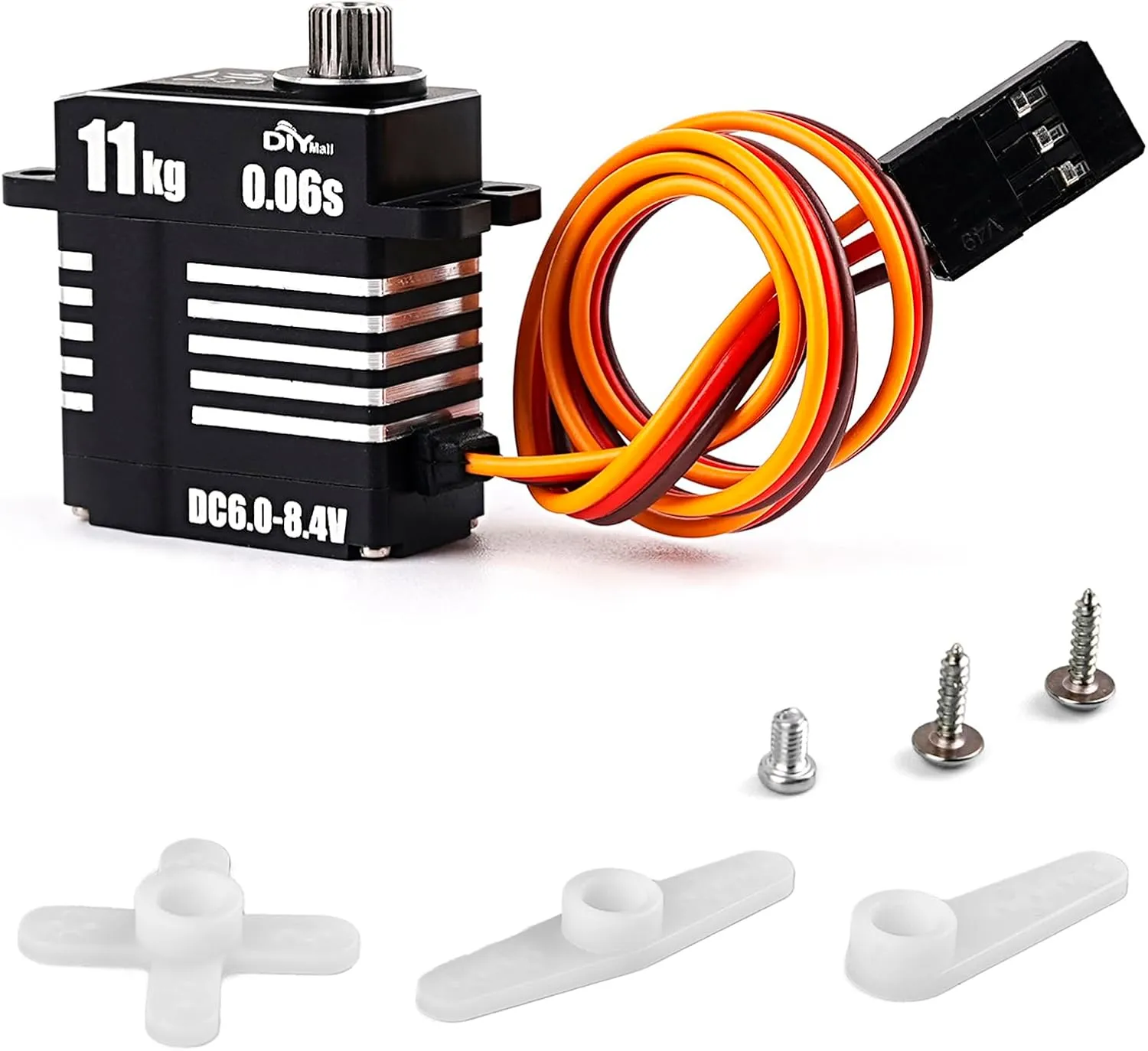

Package includes:
1 x 11KG All-metal servo
