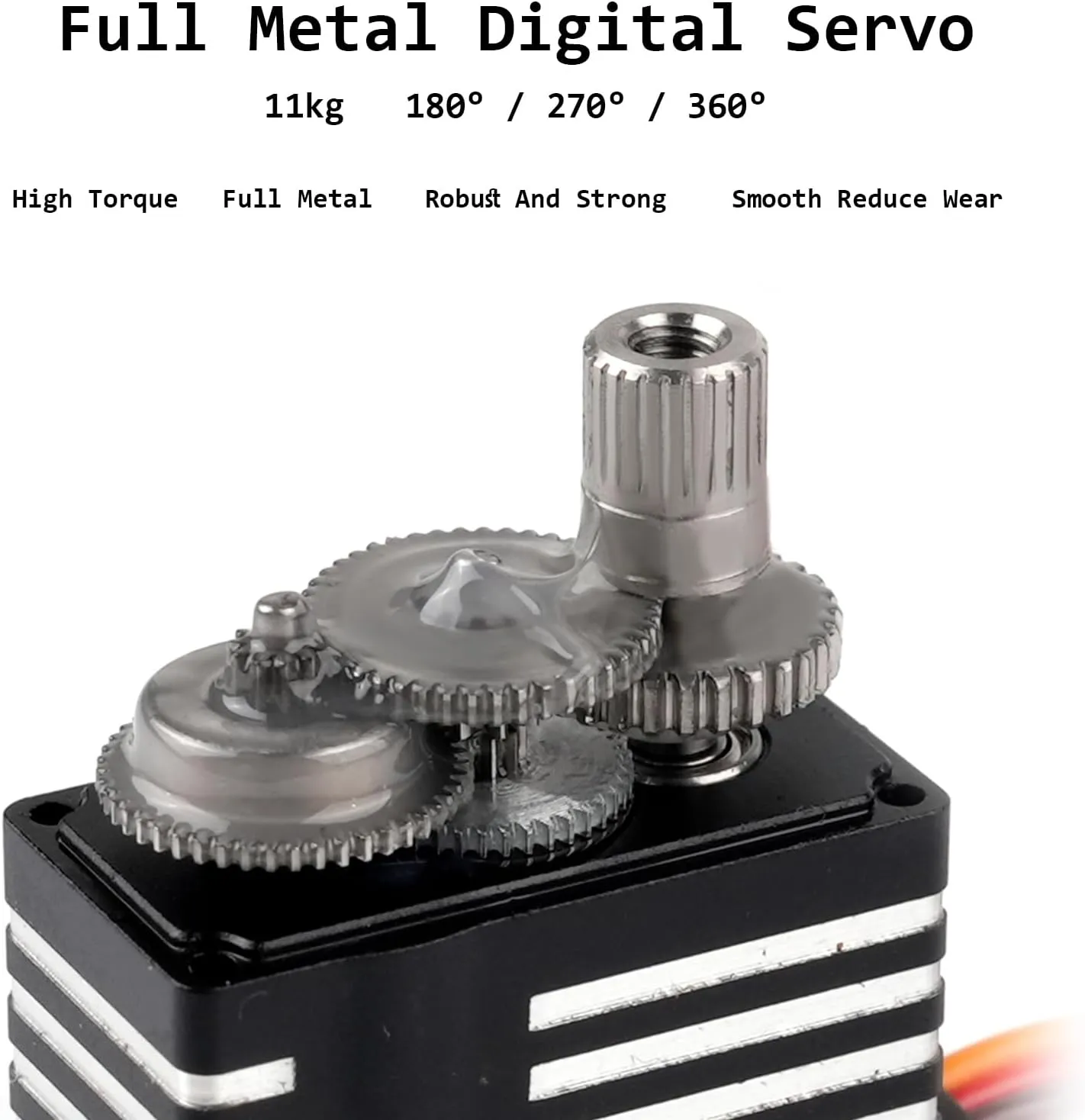

DIYmall High Torque 11KG Mini All-metal Digital Servo

Apply Environmental Conditon
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C

Standard Test Environment
Temperature Range: -25°C～70°C
Humidity Range: 65%±10%

Mechanical Specification
Size: 23.0*26.3*12mm
Weight: 22g±5%
Gear type: 5 Metal
Limit angle: 360°
Bearing: 2BB
Horn gear spline: 25T; Diameter: 5.0mm

Horn type Plastic, POM
Case Aluminum alloy
Connector wire 250mm±5mm
Motor Coreless high speed motor
Splash water resistance IP65

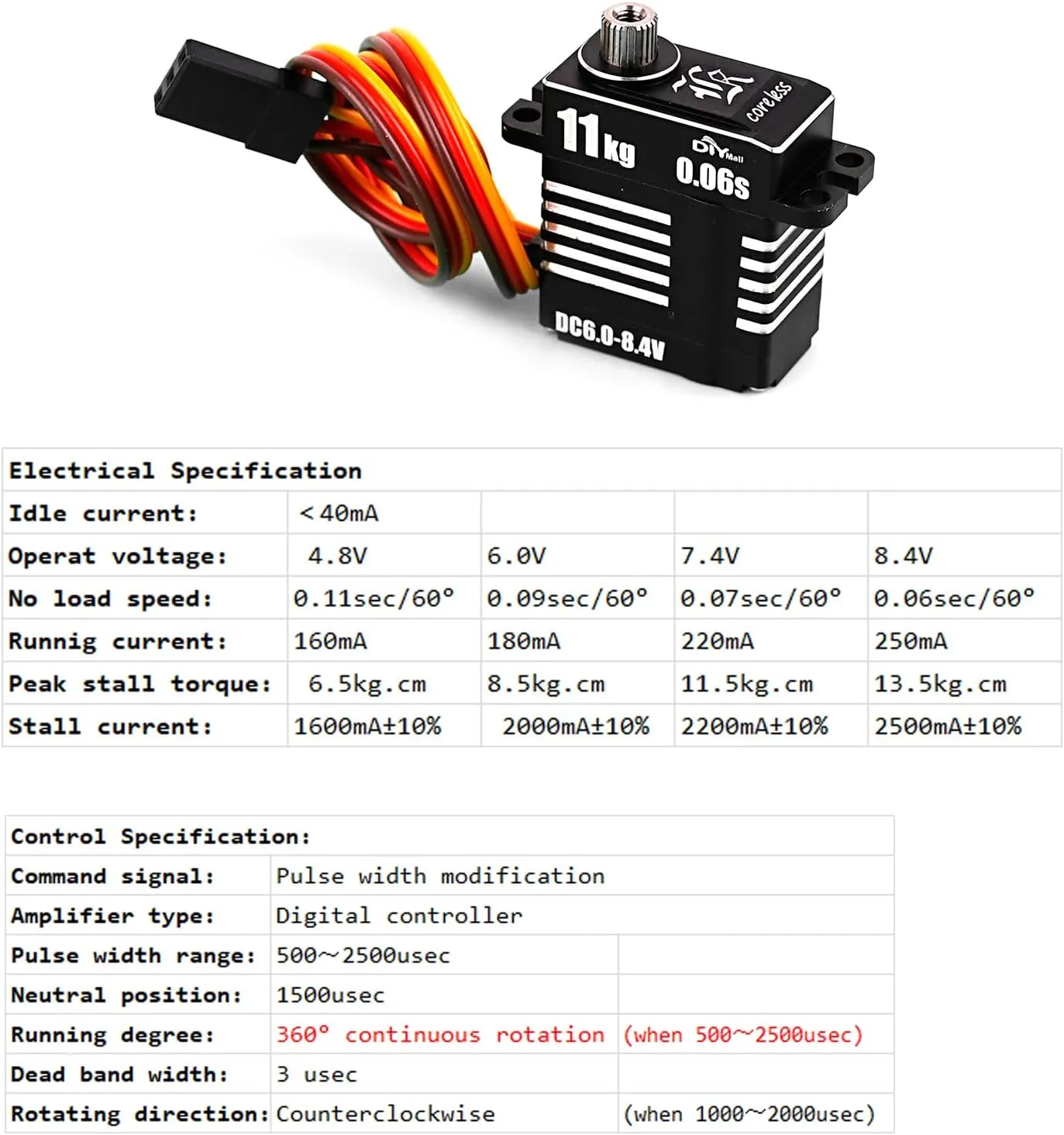

Electrical Specification
Idle current: ＜40mA
Operat voltage: 4.8V 6.0V 7.4V 8.4V
No load speed: 0.11sec/60° 0.09sec/60° 0.07sec/60° 0.06sec/60°
Runnig current: 160mA 180mA 220mA 250mA
Peak stall torque: 6.5kg.cm 8.5kg.cm 11.5kg.cm 13.5kg.cm
Stall current: 1600mA±10% 2000mA±10% 2200mA±10% 2500mA±10%

Control Specification:
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 360° continuous rotation
Dead band width: 3 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

Package includes:
1 x 11KG All-metal servo
