- The Goosky Legend RS5 Electric Helicopter Kit stands out with its robust design, showcasing Goosky's renowned precision and craftsmanship. The helicopter features a thickened 12mm main shaft and a 6mm tail shaft, enhancing overall rigidity and stability during flight.
- The airframe is constructed with a cage structure, supported by thickened side panels, which provide exceptional durability and strength, crucial for handling the demands of 3D flight. Core metal components are made from 7075 aviation-grade aluminium alloy, crafted with high-precision milling techniques for durability without adding unnecessary weight.
- The RS5 also incorporates a streamlined, aesthetically pleasing canopy that not only enhances its visual appeal but also offers practical benefits, such as improved aerodynamics and easy access to internal components, thanks to its quick-release design. Additionally, the RS5 is versatile, accommodating both mini and standard servos, allowing for a wide range of customisation options.
- In terms of capabilities, the RS5 is designed for high-performance 3D helicopter flying, with features that ensure both stability and agility. The oversized swashplate enhances cyclic pitch flexibility, allowing for smoother, more precise control in demanding manoeuvres. Its integrated 6mm tail shaft and hub ensure smooth tail rotor operation, minimising vibrations during high-speed rotations.
- The helicopter’s main rotor head, with its symmetrical feathering shaft teeter hinge, ensures balanced and stable flight performance, even under extreme conditions. High-speed, low-noise bearings across all rotating components guarantee smooth, reliable operation, while the lightweight landing gear is designed for easy maintenance, making the RS5 as practical as it is capable.
- The precisely calculated tail pitch control system, paired with weighted tail blade grips, provides increased accuracy in control with less effort, making it a perfect choice for experienced 3D pilots seeking high responsiveness and precision.
- The RS5 also introduces several key updates and improvements that make it a more refined and advanced option compared to previous models. The new integrated main motor counter-bearing bracket and one-piece main shaft alignment bracket offer increased precision and strength, improving the helicopter’s overall structural integrity.

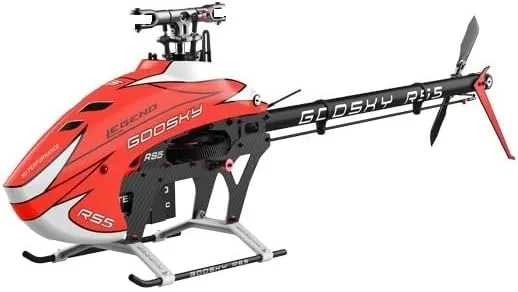

THE RS5 HELICOPTER IS THE LATEST ADDITION TO THE GOOSKY LEGEND FAMILY, INHERITING GOOSKY'S RE-NOWNED EXCELLENCE IN 3D HELICOPTER PERFOR-MANCE.
In contrast to conventional designs in the 550 class, the RS5 features a thickened main shaft and tail shaft with diameters of 12mm and 6mm respectively. It boasts a one-piece tail shaft and hub with a large diameter (approx 30mm) tail boom allowing for enhanced agility through its oversized swashplate assembly.

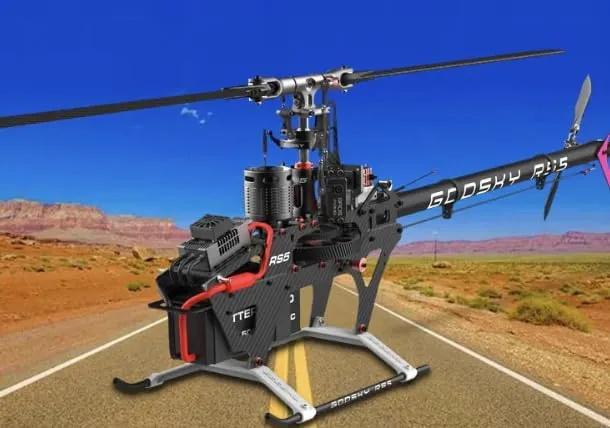

The main frame is designed in a strong cage structure with thickened side panels, providing the RS5 with an unprecedented level of overall rigidity. Additionally, the newly designed streamlined canopy enhances the visual appeal.
The RS5 is designed for mini swash servos but both mini servos and standard servos are interchangeable in the airframe without the need for replacement parts.
1. Features:
Thickened 12mm main shaft and 6mm tail shaft for added rigidity
Oversized swashplate for enhanced cyclic pitch flexibility

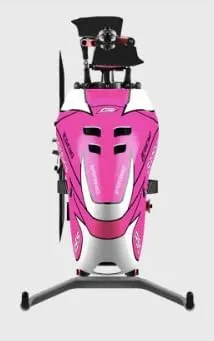

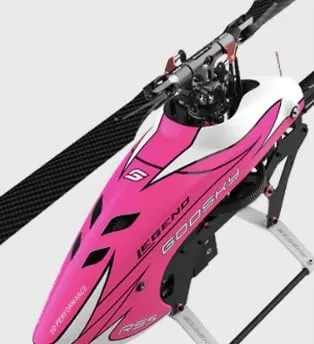

Streamlined, visually appealing canopy design
Double-threaded tail push rod
Compatible with both mini and standard servos without modification
Integrated one-piece tail shaft and hub for smooth tail rotor operation
High-strength 7075 aviation-grade aluminium alloy core components
Precision-machined rotor head for stable flight performance
Lightweight and high-strength landing gear for easy maintenance
Mini and standard servo compatibility
2. Spec:
Brand: GOOSKY
Model: RS5
Overall Height: 320mm
Width: 203mm
Main Gear: 107T
AIRFRAME weight (no battery): approx 2.68kg
Feathering Shaft Diameter: Φ8mm
One-piece Tail Shaft Diameter; Φ6mm
Front Tail Pulley: 75T
Main Shaft Diameter:Φ12mm
Tail Spindle Diameter: Φ4mm
Tail belt width: 6mm
Main Gear Ratio (Main Motor Gear 12T): 8.917
Main Gear Ratio (Main Motor Gear 13T): 8.231
Tail Ratio(Tail Pulley 16T): 4.6875
Tail Rotor Diameter (with the included 95mm tail blades): Φ259mm
Battery Compartment Size (length*width*height): 245*52*60mm
3. Includes:
(1) Goosky Legend RS5 Helicopter Kit
4. Needed To Complete:
(1) Transmitter/Receiver System
Motor
ESC
Servos (Mini or Standard)
Battery
Gyro/Flight Controller
