Product Description

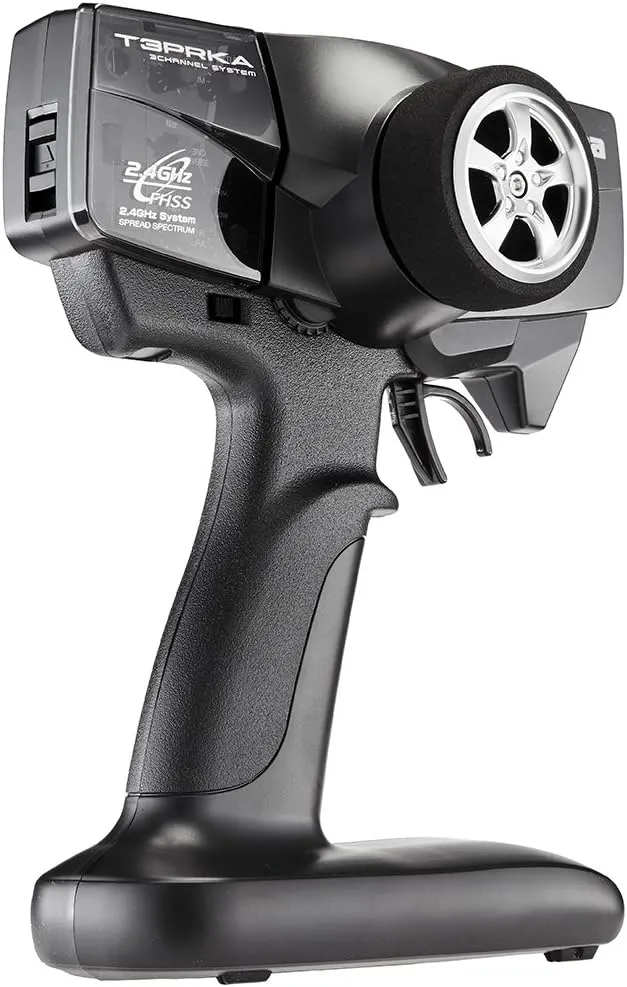

The most affordable 2.4GHz surface system Futaba offers, the 3PRKA is an outstanding value in basic 2.4GHz control, whether you're looking at it as an inexpensive start-up system or an economical upgrade for your RTR. It puts the interference-free dependability of Futaba FHSS (Frequency Hopping Spread Spectrum) technology at your fingertips.

• Dual-Rate Steering — a convenient thumb dial lets you dial in steering on the go! Move it clockwise for more steering, or counterclockwise for less!
• Throttle Fail-Safe — moves the throttle to a preset position if signal is lost or interrupted. Prevents runaways and lost vehicles — automatically.
• Low-Battery Warning — a flashing LED lets you know when battery voltage is low and it's time for new batteries.
• The R203GF's high-voltage (4.8V-7.4V) design gives you the freedom to use it with LiPo and LiFe packs as well as NiCd and NiMH packs. It's ideal for FHSS systems such as the 3PRKA, but will also auto-adapt for flawless performance with Futaba S-FHSS systems.

3PRKA Features

• Throttle and steering trims & servo reversing
• Steering dual rate dial
• Throttle end point adjustment (EPA)
• Throttle fail-safe
• 70:30 throttle mode
• Channel 3 switching
• Built-in antenna
• Protective cover
• Low-battery warning
• R203GF S-FHSS receiver
• One year limited manufacturer. /li>

  Transmitter Specifications:

  • Type: 3-Channel FHSS
  • Transmitting Frequency: 2.4GHz band
  • Includes: 3-Channel R203GF Receiver
  • Current Drain: 100mA or less
  • Requires: (4) "AA" alkaline batteries

  Receiver Specifications:

  • Type: 3-channel FHSS/S-FHSS
  • Input Power: 4.8V-7.4V
  • Dimensions: 1-9/16 x l-1/16 x 3/8 in (39 x 26 x 10 mm)
  • Weight: 0.28 oz (8 g)
  • Current Drain: 30mA at no signal
  • Operating Voltage: 4.8 - 7.4V (shared with servo)
  • Battery Fail Safe Voltage: 3.8V. Note: Battery fail safe voltage is set for 4-cell NiCd/NiMH batteryBattery F/S does not work properly when other type of battery is used

  Includes Futaba 3PRKA 2.4GHz FHSS Transmitter, R203GF Receiver, InstructionManual and On/Off Switch

  Requires servos of your choice and four AA batteries for transmitter

  Notes:

  • 2.4GHz FHSS is not compatible with FASST systems. Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
  • High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs

From the Manufacturer

This is the 3-Channel Futaba 3PRKA 2.4GHz FHSS Radio System with the R203GF Receiver. Ideal upgrade for radios found in RTR vehicles.
