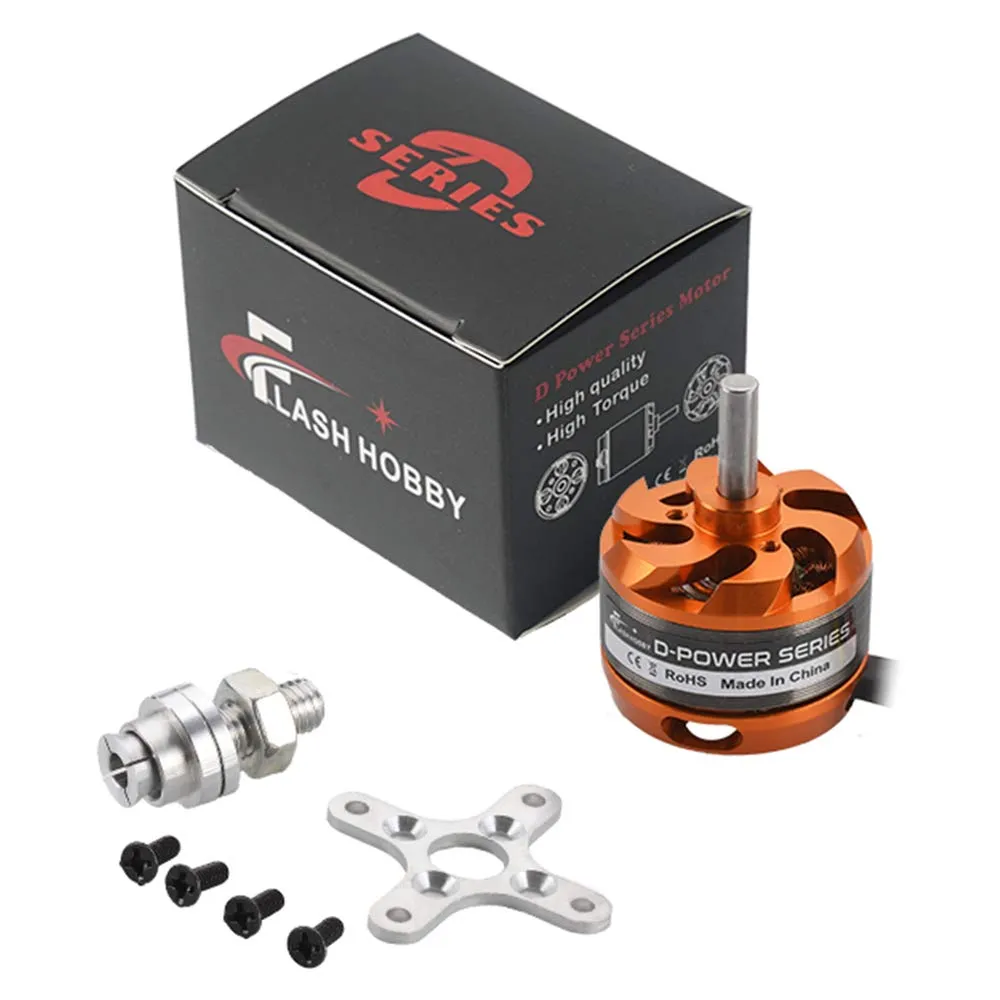

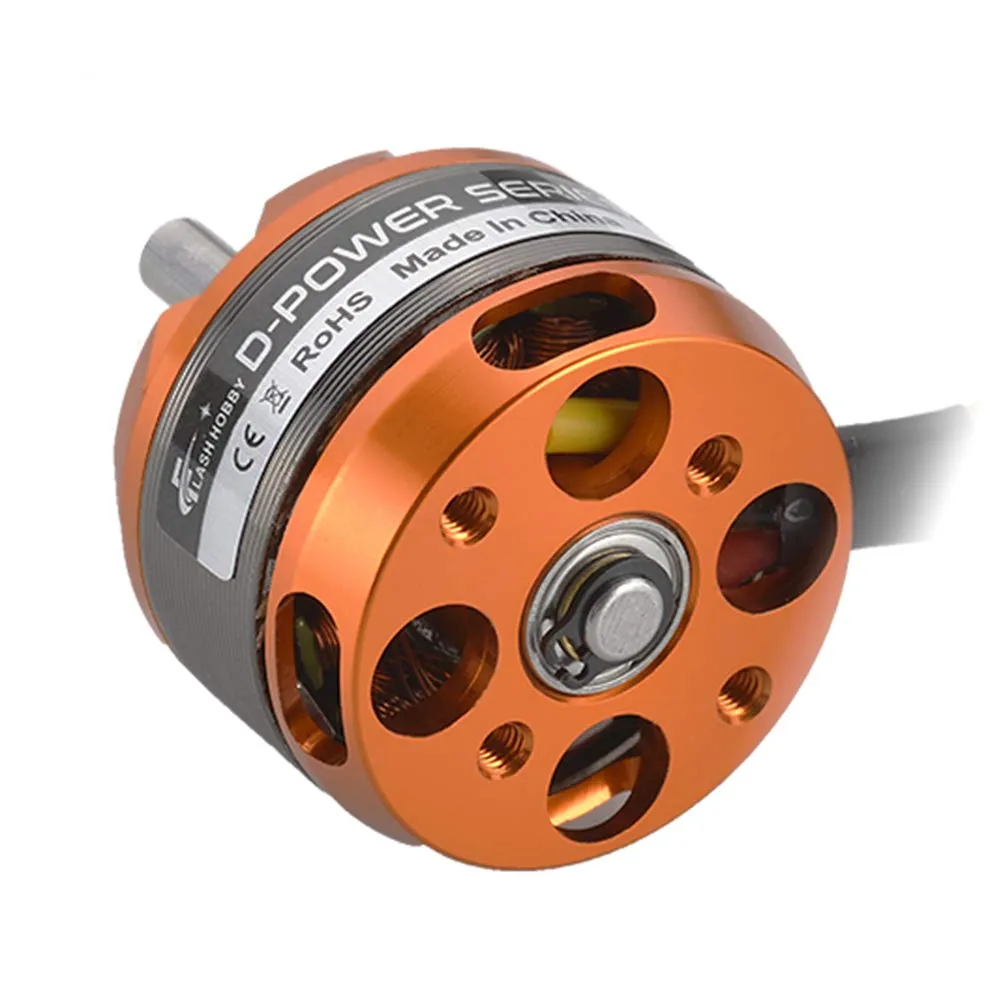

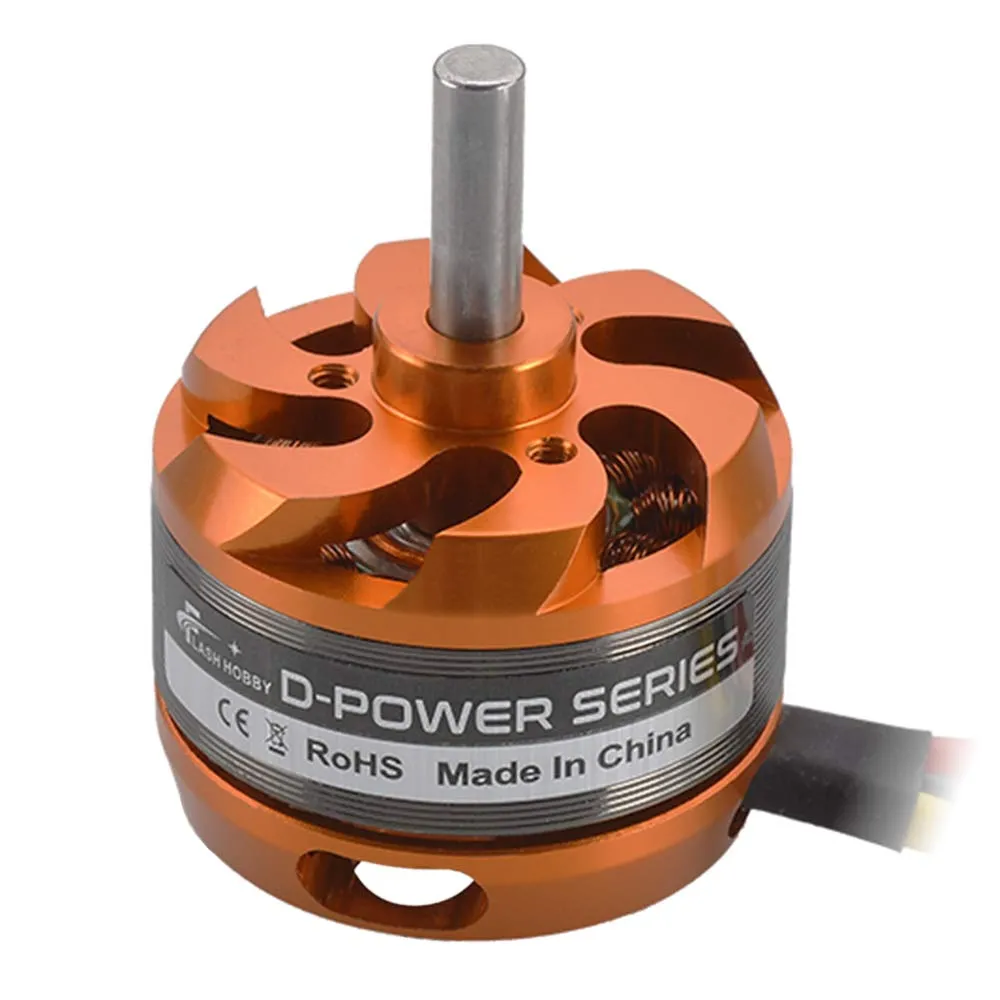

- D3530 series motor is upgraded with features fixed wing multirotors absolutely need. The motor is lightweight, low noise and higher thrust
- FLASH HOBBY brushless motor can be used for 8 inch prop, which is suitable for Mini Multicopters, RC Plane, Helicopter, Multirotor Quadcopter and fixed wing

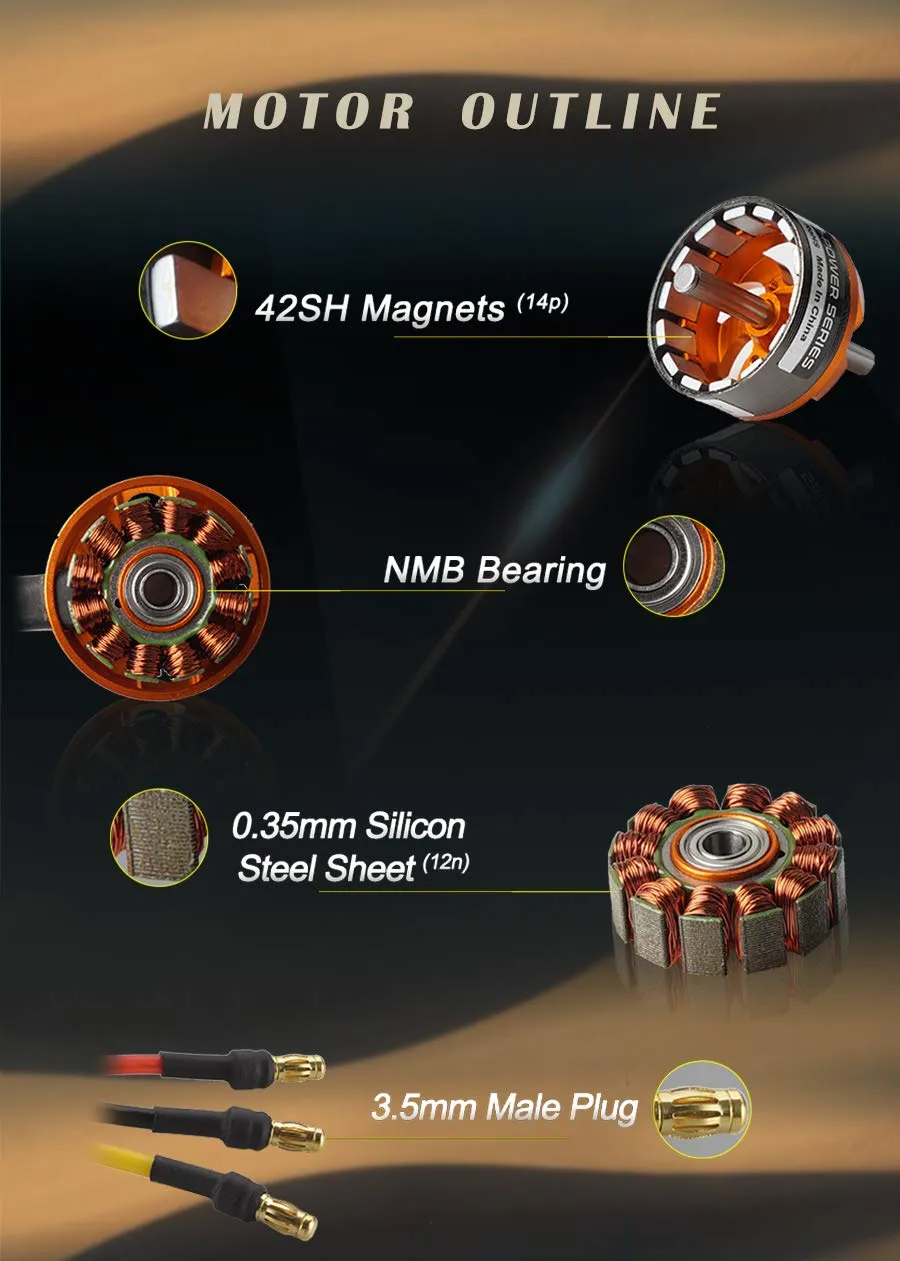

- By adopting 42SH curved magnets and NMB bearing, the pulling force between the stator and magnet is greatly increased. The max pull can be up to 1180g
- Precision engineered for maximum energy conversion. Precision balanced rotor, smoothness for best reliability and maximum RPM
- High torque motor size is 35 x 30mm, and the shaft size is 5 x 47.5mm, suggest ESC 30A~70A. High purity copper windings maximizes efficiency
Specification:
Battery: 2-4s Lipo
Motor Weight: 74g
Motor Size:35*30mm
Shaft Size:5.0*47.5mm
Motor Mount: 16*19mm(M3*4)
Working Temperature Range : -0°C~ 80°C
Control Method: Use ESC And Adjust PWM signal For Control, PWM Adjustment Range 900-2100Us
D3530-1400KV Motor
Max pull : 1180g
Volts : DC7.4~15.0V
Suggested ESC: 30A~70A
Maximum Power : 446W
suggested Prop: 7 inch prop
D3530-1100KV Motor
Max pull : 1100g
volts : DC7.4~15.0V
suggested ESC:30A~70A
Maximum Power : 313W
suggested Prop: 8 inch prop
- Product Dimensions : 1.38 x 1.38 x 1.38 inches; 2.61 ounces
- Manufacturer recommended age : 16 months and up
- Date First Available : June 11, 2020
- Manufacturer : FLASH HOBBY
- Country of Origin : China
