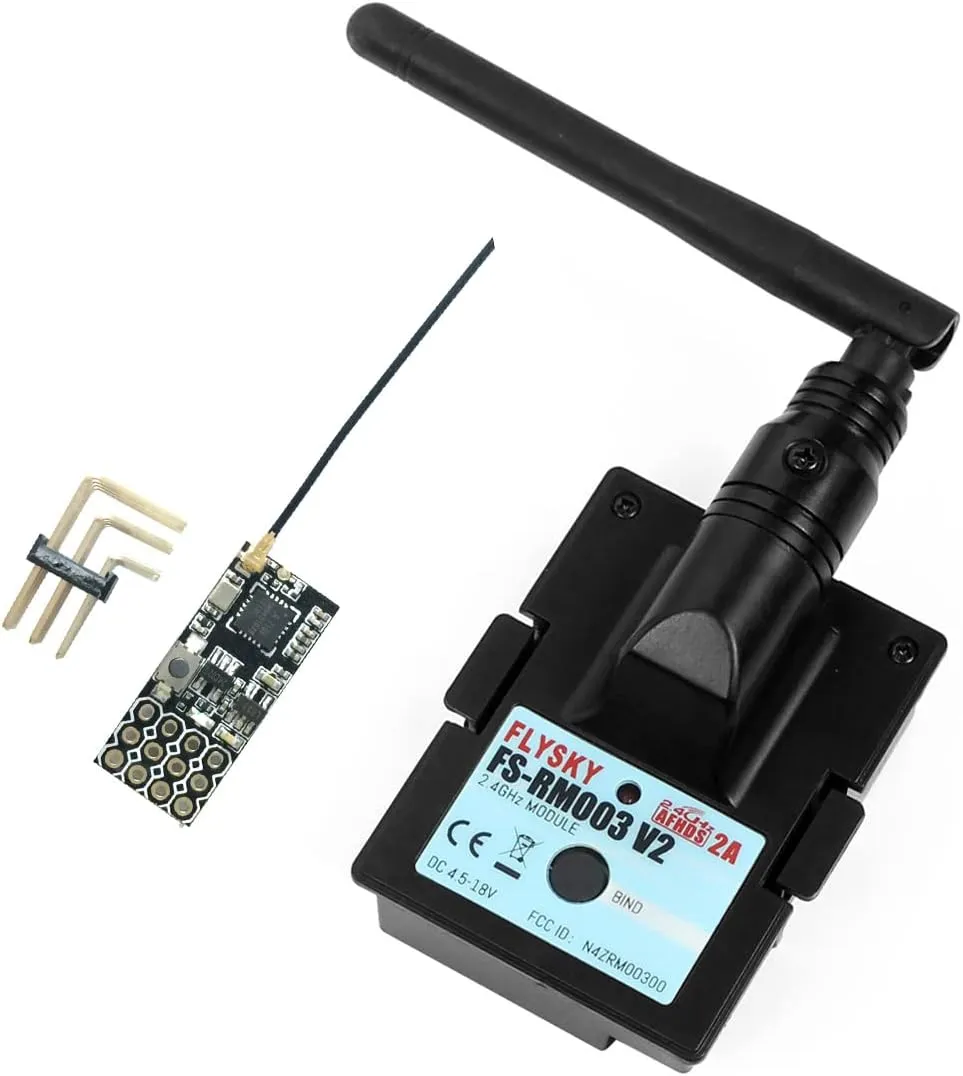

FEICHAO FS2A-4CH AFHDS 2A Mini Receiver PWM Output with FS-RM003 Transmitter Module for Flysky AFHDS 2A Protocol Transmitter

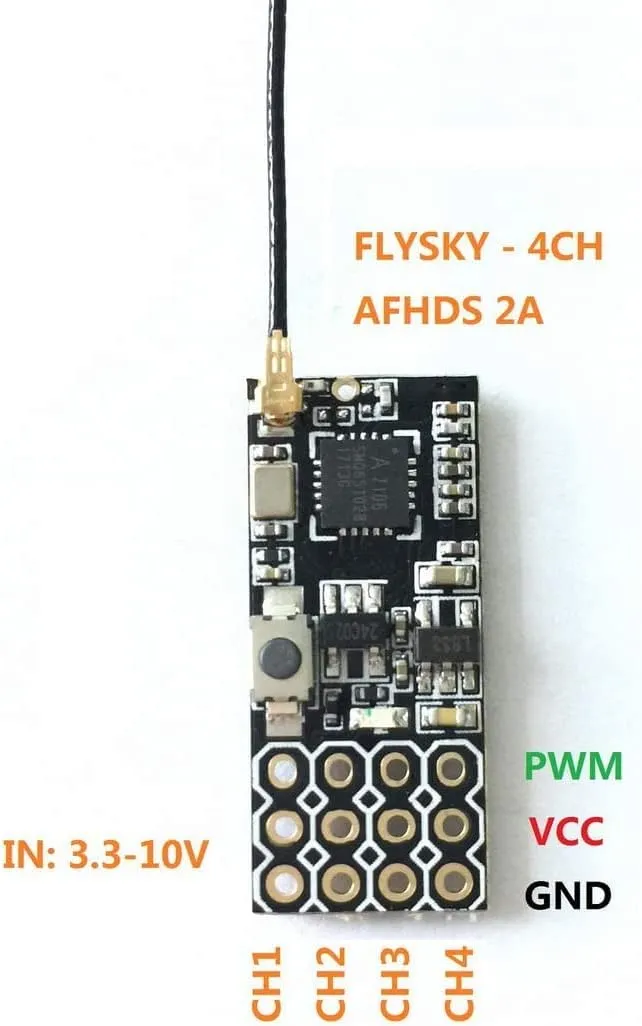

FS2A-4CH AFHDS 2A Mini Receiver
Description:
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Supply voltage: 3.3-10V
Distance: 400 meters
Working current: 20MA
Dimensions: 11 * 25MM
Weight: 0.9 grams

Bind:
1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:
The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.


FS-RM003 2.4G 9CH Transmitter Module
Description:
Second generation automatic frequency hopping digital system
Supports AFHDS 2A receivers
Compatible Protocol: Flysky AFHDS 2A
Can be installed in the FS-TH9X
Can switch output modes

Package Included( Optional ):
1.Receiver Module Version:
1* FS2A-4CH AFHDS 2A Mini Receiver
1* FS-RM003 Transmitter Module
1* FEICHAO Battery Strap

2.Receiver Version:
1* FS2A-4CH AFHDS 2A Mini Receiver
