- 【Performance Optimized】- Offering the combination of , we satisfy your diverse needs fitting for RC Drone Helicopter FPV . Sculpted for top-notch performance!
- 【Secure Arming Function】- Secure your gear with our brushless esc. Once the battery is connected, the motor will not rotate regardless of the position of the throttle lever. Safety first, always.
- 【Quality Assured】- Designed with materials, our brushless motor and esc promises durability, stability, and longevity. on us to provide functioning gear that survives the test of time.
- 【Multiple Protective Functions】- Introducing the rc speed controller with in-built multiple functions including low-voltage cut-off , overheat and throttle signal loss . Ensures performance while keeping your equipment safe.
- 【Versatility and Quiet 】- The brushless motor controller exhibits compatibility with both lithium and Ni-MH batteries. The 2212 1000KV Motor is lightweight, delivers stable and works with low noise.
1. Safe arming function, no matter where the throttle lever is, the motor will not rotate after connecting the battery.
2. Multiple functions: low‑voltage cut‑off , overheat , throttle signal loss .

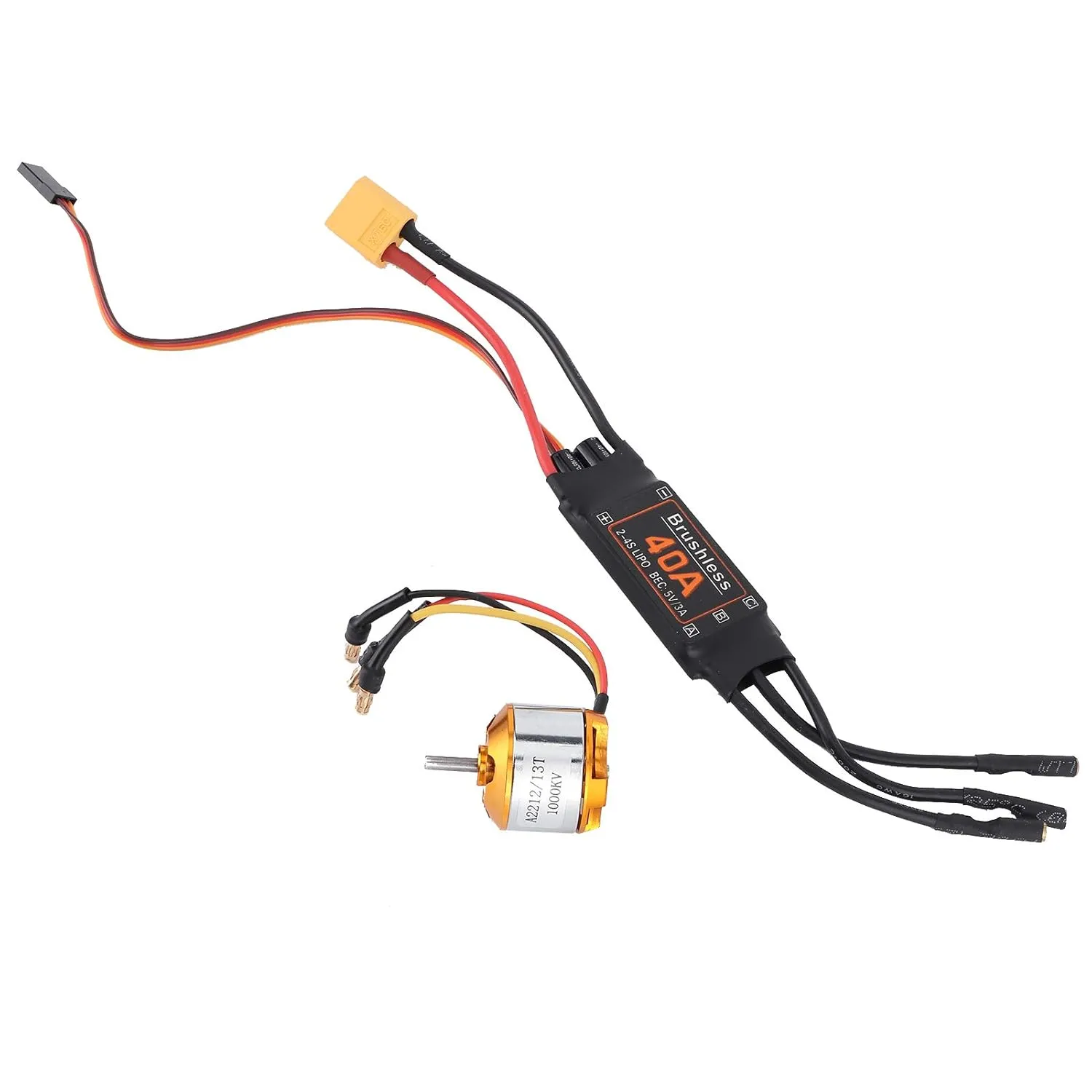

3. 2212 1000KV motor brushless ESC, meet your different needs, suitable for RC Drone Helicopter FPV model.
4. The ESC is compatible with lithium batteries and Ni‑MH batteries. The motor is light in weight, stable in and low in noise.
5. Made of material, which makes it , stable and has a long service life.
Specification:
Item Type: RC Motor ESC
Material: Metal Electronic Components
Color: As shown in the picture
Motor Parameters:
KV: 1000
Ri (MΩ): 0.033
Motor Size: Approx.27.5x38mm / 1.08x1.5in
Shaft Diameter: 3.17mm/0.12in
ESC Parameters:
Continuous Current: 40A
Current: 55A
BEC Output: 5V at 3A
Battery Input: 2-4S
Plug: XT60
Quantity: 1 set
Application: for RC drone, helicopter, FPV, etc
Package List:
1 x Motor
1 x Motor Head
1 x Motor Base
4 x Screw
1 x ESC
Notice:
1. Please allow 1‑2in error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
- Package Dimensions : 4.72 x 3.54 x 1.97 inches; 3.53 ounces
- Date First Available : December 10, 2024
- Manufacturer : Yosoo
- Country of Origin : China
