- 💗【Premium Material】ABS shell, strong and wear-resistant, can be used normally at -20℃ to 60℃.
- 💗【Clear LCD Screen】LCD electric display color screen instrument, with clear display, can observe all the data of the car at any time.
- 💗【Easy Installation】The handlebar buckle can be opened directly, which is convenient to install. High temperature resistant connecting wire, waterproof head, simple docking operation and durability.
- 💗【Wide Application】Handle diameter is 2.2CM, which is suitable for most handlebars in the market.
- 💗【Warm Notice】Please double check to make sure the product is fit your ebike. If you have any questions with our product after receiving, we will offer you the best solution. We value every single customer.
Description:

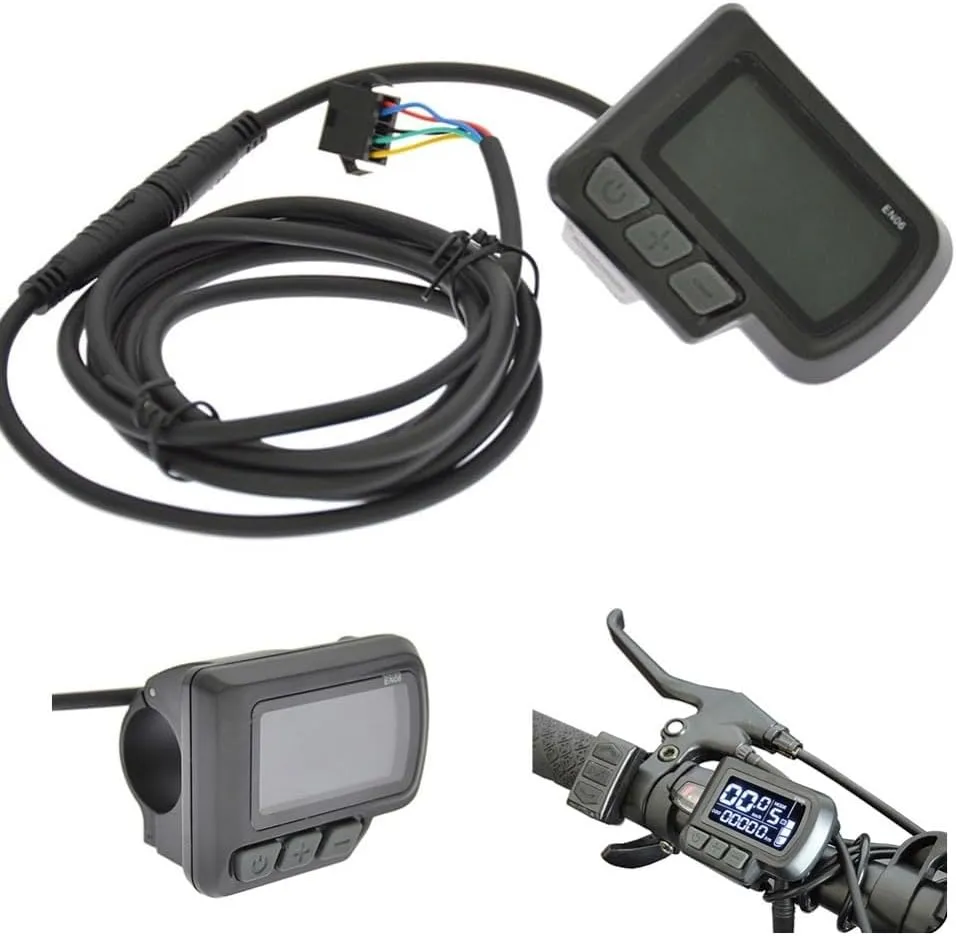

Name: Electric Bicycle EN06 Smart LCD Instrument
Color: black
Material: ABS
Setting For EN06 Display
P01: Backlight Brightness (1: darkest; 3: brightest)
P02: Mileage Unit (0: KM; 1: MILE)
P03: Voltage Class 24V/36V / 48V
P04: Auto-Sleep Time: (0: never, other value means display sleep interval) Unit: minute
P05: Power Assist Gear
0/3 Gear Mode: Gear 1: 2V, Gear 2: 3V, Gear 3: 4V
1/5 Gear Mode: Gear 1: 2V, Gear 2: 2.5V, Gear 3: 4V, Gear 4: 3.5V, Gear 5: 4V
P06: Wheel Diameter Unit: inch Precision: 0.1
P07: Magnet Steel Number (for Speed Test) Range: 1-100
P08: Speed Limit: Range: 0-50km/h, parameter 50 indicates no speed limit.
P09: Direct Start / Kick-to-Start Setting
0: Direct Start
1: Kick-to-Start
P10: Drive Mode Setting
0: Power Assist - The specific gear of the cooperate drive decides the cooperate power value. In this status the handlebar does not work.
1: Throttle Mode - The vehicle is driving by the handlebar. In this status the power gear does not work.
2: Power Assist Throttle - Electric drive does not work in 0-start status.
P11: Power Assist Intensity Range: 0-5
P12: Power Magnet Steel Number: 5 / 8 / 12pcs
P13: Current Limit Value: 12A by default; Range: 1-20A
P14: Under-voltage: Choose according to your set
P15: ODO 0-Out
The smart LCD instrument communication protocol: No. 2 protocol, non-No. 2 protocol is not compatible
Packing list:
1 x Electric Bicycle EN06 Smart LCD Instrument
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
