- water-proof ,advanced linearity and accuracy with precision potentiometers,stable,low noise
- best use voltage is 7.4v.Torque: 58kg.cm.at(6v) 65kg.cm.at(7.4v) 70kg.cm.at(8.4v)
- 60kg RDS5160 Digital Metal Robotic Servo(Control Angle 270°)Mechanical Angle :360 deg
- equipped with strong copper & aluminum gears,CNC aluminium middle Shell
- Professional servo kit easy to design and do all kinds of robot,Size:65*30*48(servo)
Note: 1. The best use voltage is 7.4v.
It is recommended to use 2s battery for power supply (6v-8.4v) .
2. The working angle of the servo is 270 degree (PWM: 500us-2500us).
Some remote controls can only output 1000-2000, it is recommended to buy 270 degree..
Sepcification:.

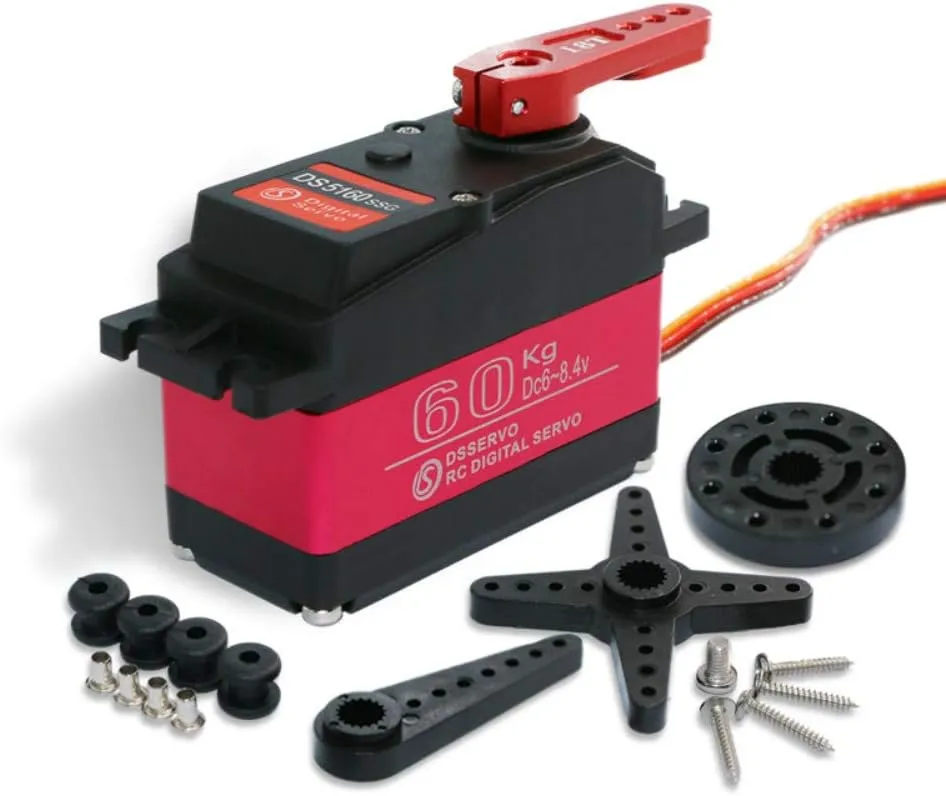

Package contains:.
1 pieces of DS5160 Digital Metal Robotic Servo.
1 pieces of 18T servo arm.
one set of screw(see the picture.
Size:65*30*48(servo).
Weight:162g.
Wire length:320mm.
Speed: 0.17sec/60 degree at(6v).
0.15sec/60 degree at(7.4v).
0.13sec/60 degree at(8.4v).
Torque: 58kg.cm.at(6v).
65kg.cm.at(7.4v).
70kg.cm.at(8.4v).
Voltage: 6v-8.4v.
Dead Zoon setting:3 Microseconds.
Features:.
- Durable Metal Gear.
- Dual Ball Bearing.
- Programmable Digital Amplifier with Mosft Drive.
- Bottom Side Axial Mount Hole.
- Original factory product.
- Less Noise .
-Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation .
Angle:maximum 270 deg.
Mechanical Angle :360 deg (Plug/Output wheel/Radio control system compatible with Futaba JR Hitec).
