- Strict precision component performance requirements : Strong engineering and technology rich application integration to strengthen the design and continuously improve the quality of manufacturing in response to the strong demand of high-quality products.
- Delicate Crafts: The 15T main transmission gear is the only one used for helicopters in RC world! High-hardness carbon steel, with precision-ground tooth surface, its accuracy reached 0.015 μ! Represents high efficiency, quiet sound and low power consumption, providing a definitely stable and continuous power output, lead your fight performance outstanding!
- Simplicity over complexity: Continuing our consistent "innovative" philosophy, the lightweight structure design removes unnecessary sharp corners and creates smooth lines with zero wind resistance. What would seem to be insignificant ingenuity creates a feeling of locked in control beyond imagination.

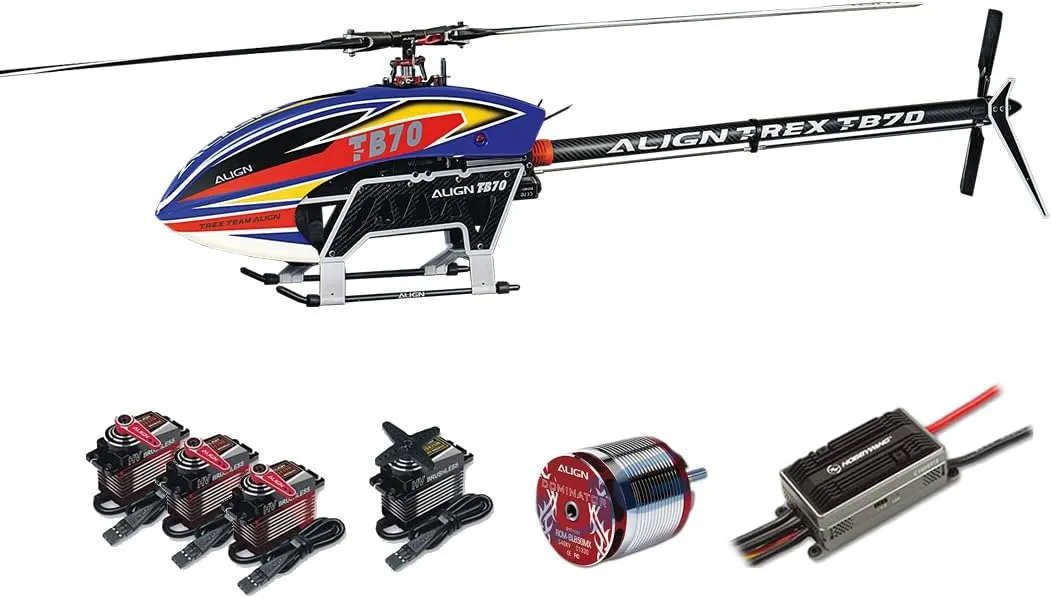

Electric equipment:
Platinum HV 200A V4 Brushless ESC x 1
850MX Brushless Motor(540KV/4535) x 1
DS830M High Voltage Brushless Servo x 3
DS835M High Voltage Brushless Servo x 1
Specification:
Length: 1356mm
Height: 358mm
Width: 187mm
Main Blade Length: 650-730mm
Main Rotor Diameter: 1542mm
Tail Length: 105-115mm
Tail Rotor Diameter: 279mm
Motor Belt Pulley: 22T
Belt Pulley: 50T
Front Drive Main Shaft: 15T
Main Drive Gear: 62T
Autorotation Tail Drive Gear: 27T
Tail Drive Gear: 23T
Drive Gear Ratio: 9.38:1:4.83
Max RPM(approx.): 2400RPM
Flying Weight(With Battery): Approx. 5kg (ALIGN 12S 5200mAh)
Accessories:
TB70 Kit Set x 1 set
700 Carbon Fiber Blades x 1 set
105 Carbon Fiber Tail Blades x 1 set
850MX Brushless Motor(540KV/4535) x 1
DS830M High Voltage Brushless Servo x 3
DS835M High Voltage Brushless Servo x 1
Platinum HV 200A V4 Brushless ESC x 1
Radio transmitter and electronic equipment required for assembly
Transmitter(6-channel or more, helicopter system)
Receiver(6-channel or more)
RCC-6CX Intelligent Balance Charger
22.2V 6S 4000~4800mAh Li-Po Battery x 2
Digital Pitch Gauge
Multi-function Tester
Flybarless System
