- Light but tough : Brand new lightweight Canopy weighs only 120g, the frame guide R angle design effectively improves the hardness and anti-deformation ability, the Canopy Mounting Bolt is designed with a press buckle, the case can be released by pressing and detached from the fixing post, and the press buckle can withstand a tensile force of 10Kg. The streamlined and neat curves of the case are not only dazzling, but also enhance the overall shape of the love machine!
- Quick battery release latch design: Align original patented stable latched battery design. Simple, easy and fast battery replacing.
- Side panel separation design : The fuselage frame is a two-stage set apart design, a high-strength composite material is applied to the 3K carbon fiber fuselage panel using a proprietary embedding technology, which effectively strengthens the structural rigidity and allows trouble-free maintenance. 1.6mm 3K carbon fiber for upper side panel/ 1.6mm 3K carbon
- New lightweight rotor head group : The low center of gravity EFL rotor head assembly is made of 6061-T6 aluminum alloy is CNC machined, matched with a high carbon steel precision CNC grinding spindle 10mm, to greatly reduce the center of gravity to effectively facilitate reduced flight resistance for 3D and Sport flight control, generating excellent stability and flight control of the helicopter ; Three-point spindle fixationn: The main shaft is stabilized by three bearing blocks which improves the stability of high-speed main blade rotation during operation.
- New swashplate : Improved mounting rod design to provide greater reliability and stability to prevent detachment of the rods during extreme flight maneuvers.
- The structure is easy to disassemble and maintain, and the high-strength and lightweight main gear only needs to loosen one. Screw to remove it.
- Belt Pulley Set : Without too much cumbersomeness, the two-point belt pressure wheel arm is cleverly used to give the tail belt a proper tightness, which makes the flight smooth and more convenient for maintenance.

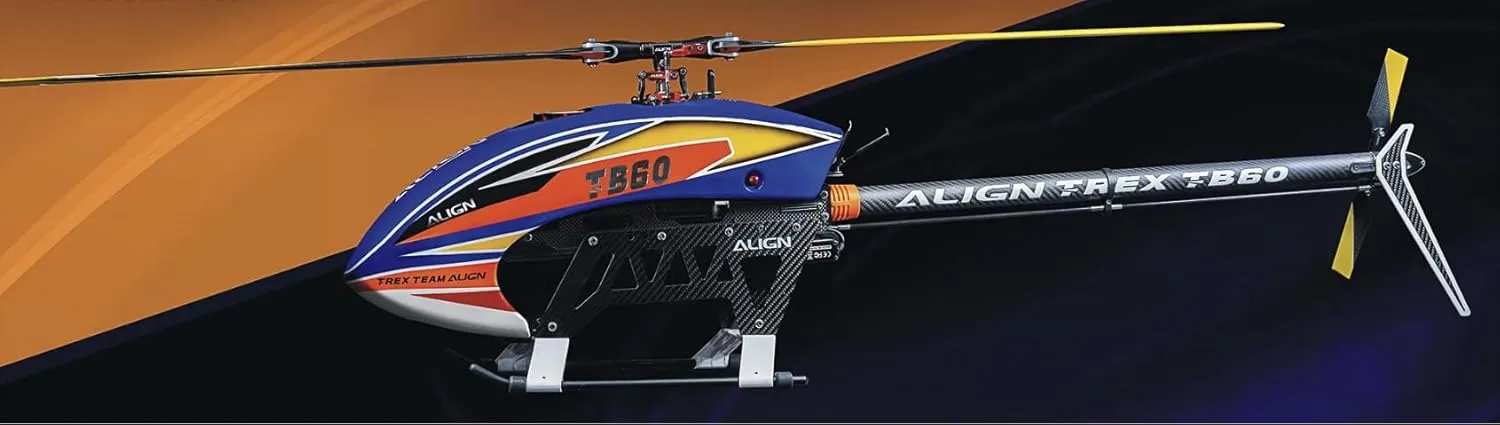

Featuring a lightweight and high-strength body design, this helicopter delivers quiet, agile, and high-performance flight capabilities.
- Specification:
Length: 1218mm
Width: 183mm
Height: 353mm
Main Blade : 600mm
Tail Blade: 95mm
Main rotor diameter: 1339mm
Tail rotor diameter: 253mm
Gear Ratio: 23T-44T (1.91)
15T-62T (4.13)
28T-23T (1.23)
7.89:1:5.04
Max RPM approx. 2400RPM
Tail boom: diameter 30mm, belt drive
Weight: (w/o batteries) : Approx. 2.9kg
- Accessories:
TB60 Set x 1
600 carbon fiber blades x 1 set
95 carbon fiber tail blades x 1 set
750MX brushless motor (480KV/4326) x 1
DS830M high voltage brushless servo x 3
DS835M high voltage brushless servo x 1
RCE-BL150A brushless ESC x 1
