- Package Includes: Motor x 1pcs
- Torque: No clear
- Usage: Home Appliance,Other
- Model number: Micro gear motor
- Output power: Not clear
Specifications:

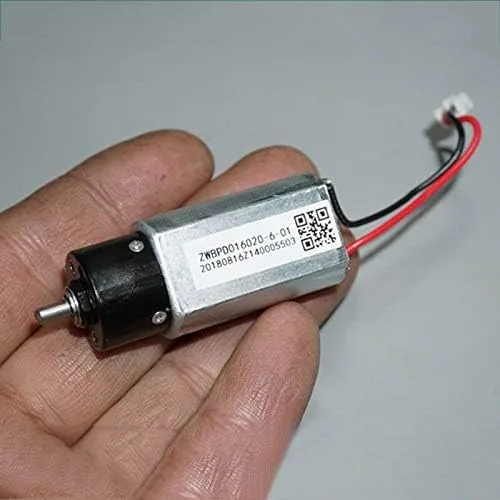

The rated voltage is 3V,can work with 1.5V-3V,tested stall torque is 300g.cm at 1.5V,stall torque is 700g.cm at 3V.
The gearbox is a planetary first-class deceleration, with a deceleration ratio of 6:1, high speed output and good deceleration sound.
1.Test data:
Voltage:1.5V No-load current:0.16A No-load speed:630RPM
Voltage:3.0V No-load current:0.21A No-load speed:1300RPM
2.Motor size: 20.2mm*32mm
3.Total length: 43.5mm
4.Gearbox diameter: 17mm
5.Output shaft diameter: 3mm(D shaft)
6.Output shaft length: 5.5mm
7.Screw hole diameter: 2mm
8.Screw hole distance: 12mm
9.Weight: 38g
Package includes:
Motor x 1pcs
Item specifics:
Torque: No clear
Usage: Home Appliance,Other
Model number: Micro gear motor
Output power: Not clear
Continuous current(a): Not clear
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: Other
Type: Gear Motor
Certification: CCC,ce
Origin: Mainland China
Output shaft diameter: 3mm(D shaft)
Shaft length: 5.5mm
Working voltage: DC 1.5V-3V
Condition: Used
